AEACMK0660746-SG4
RF ANT 1561/1575/1602MHZ EXTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

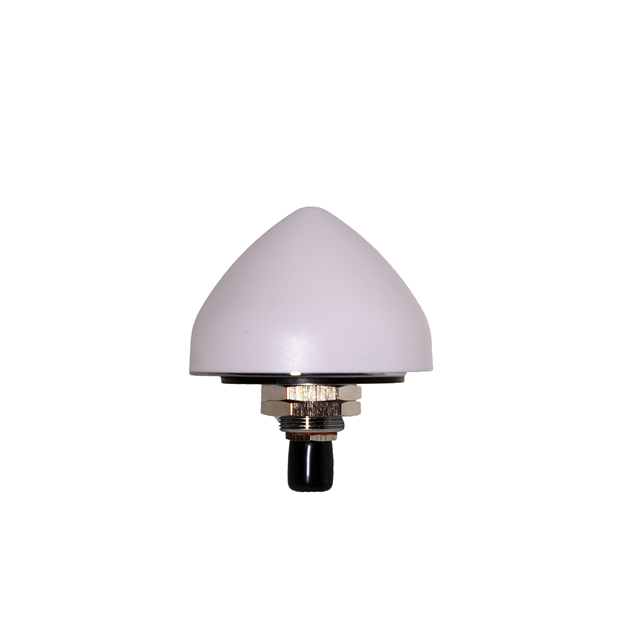

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Panel Mount
Additional Information
Series: AEACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | LNA |
| Packaging | Bulk |
| Mounting Type | Panel Mount |
| Frequency Range | 1.561GHz ~ 1.602GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | 5dBic |
| Termination | TNC Female |
| Ingress Protection | IP67 |
| Number of Bands | 1 |
| VSWR | 1.5, 2 |
| Antenna Type | Dome |
| Height (Max) | 1.811"" (46.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.5815GHz |
| RF Family/Standard | Navigation |
