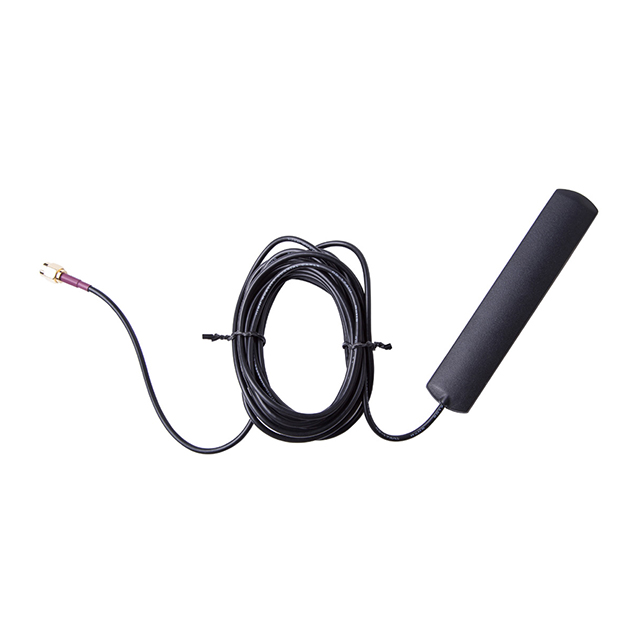

AEACCA115021-S850
RF ANT 1.71GHZ FLT BAR SMA FAKRAManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA GSM Flat Bar Fakra, SMA Adhesive
Additional Information
Series: AEACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Adhesive |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | GSM |
| Gain | 2dBi |
| Termination | Fakra, SMA |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 2 |
| Antenna Type | Flat Bar |
| Height (Max) | 0.228"" (5.80mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 892MHz, 1.94GHz |
| RF Family/Standard | Cellular |
| Power - Max | 10 W |
