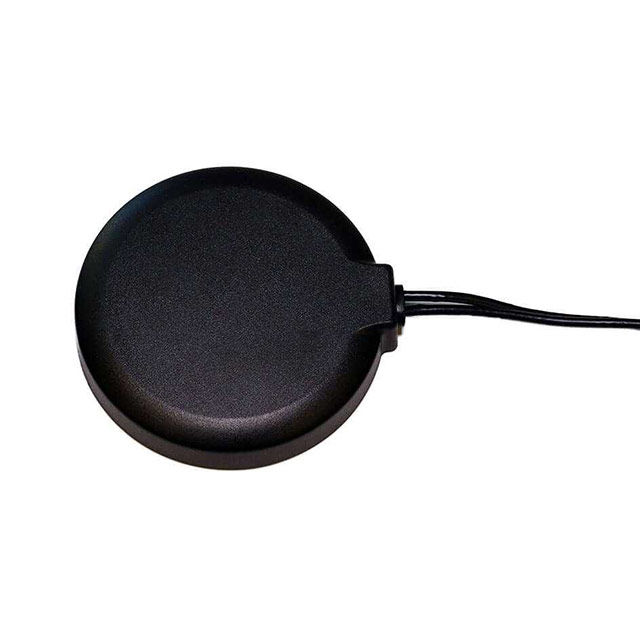

AEACBD081016-C2LG
LTE/GPS MAGNETIC MOUNT COMBO ANTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 2G, 3G, 4G, GSM, GPS, GNSS, LTE Dome SMA Male Magnetic
Additional Information
Series: AEACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m, LNA |
| Packaging | Bulk |
| Mounting Type | Magnetic |
| Frequency Range | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz |
| Applications | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
| Gain | 2.5dBi, 2dBi |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Number of Bands | 3 |
| VSWR | 2, 3 |
| Antenna Type | Dome |
| Height (Max) | 0.638"" (16.20mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.575GHz, 2.2GHz |
| RF Family/Standard | Cellular, Navigation |
