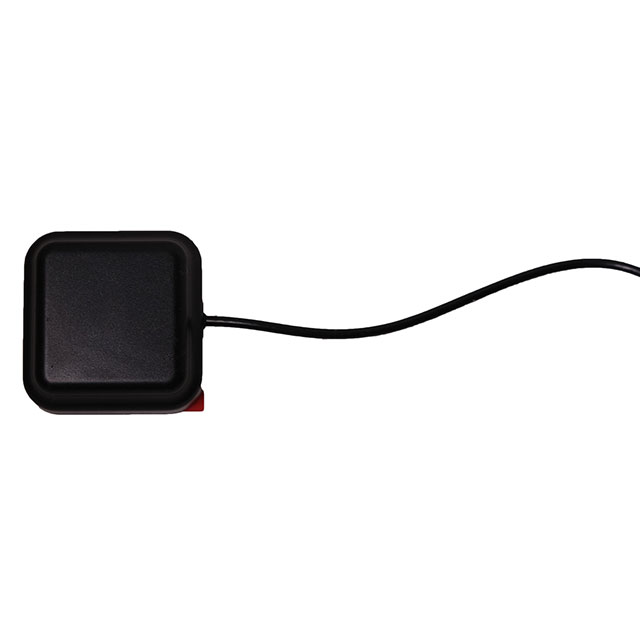

AEACBA050018-SG4L2L5
RF ANT GPS/GLONASS DOMEManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Module SMA Male Adhesive, Magnetic
Additional Information
Series: AEACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m, LNA |
| Packaging | Bulk |
| Mounting Type | Adhesive, Magnetic |
| Frequency Range | 1.176GHz ~ 1.227GHz, 1.561GHz ~ 1.602GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | 3dBic |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Number of Bands | 2 |
| VSWR | 1.5, 2 |
| Antenna Type | Module |
| Height (Max) | 0.709"" (18.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.2015GHz, 1.5815GHz |
| RF Family/Standard | Navigation |
Request a Quote
