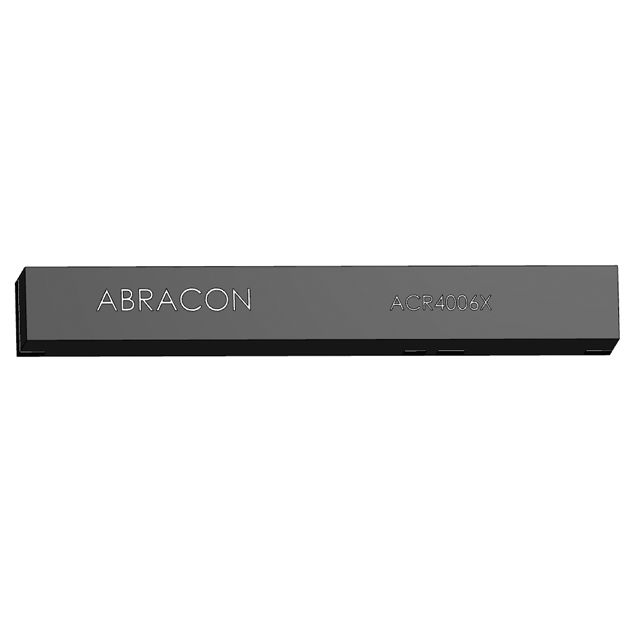

ACR4006X
RF ANT 600-6000MHZ WIDEBAND CHIPManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 4G, 5G, LTE Chip Solder Surface Mount
Additional Information
Series: ACRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 600MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 6GHz |
| Applications | 4G, 5G, LTE |
| Gain | -2.33dBi, 0.87dBi, 1.26dBi, 0.14dBi, 0.95dBi, 3.56dBi, 3.54dBi, 4.42dBi, -1.15dBi, 0.86dBi, 3.59dBi, |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | - |
| Antenna Type | Chip |
| Height (Max) | 0.197"" (5.00mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 780MHz, 2.2GHz, 4.65GHz |
| RF Family/Standard | Cellular |
Request a Quote
Clients Also Buy

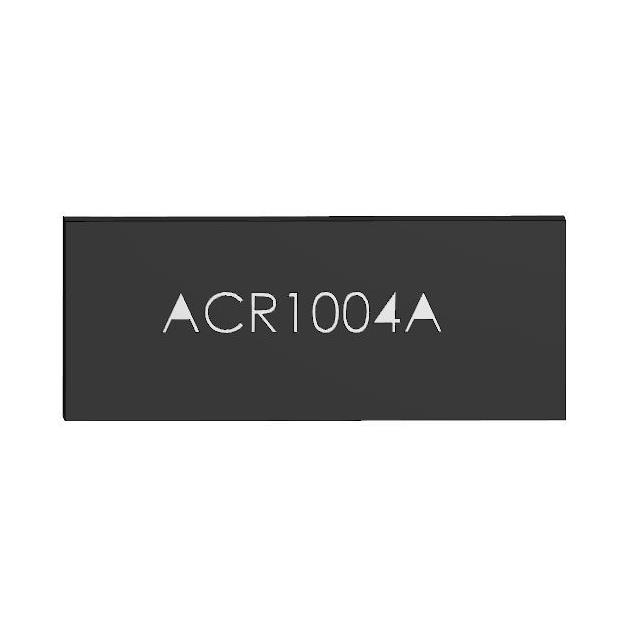

ACR1004A
2.4/5/6GHZ WIFI/BT/ZIGBEE ANT

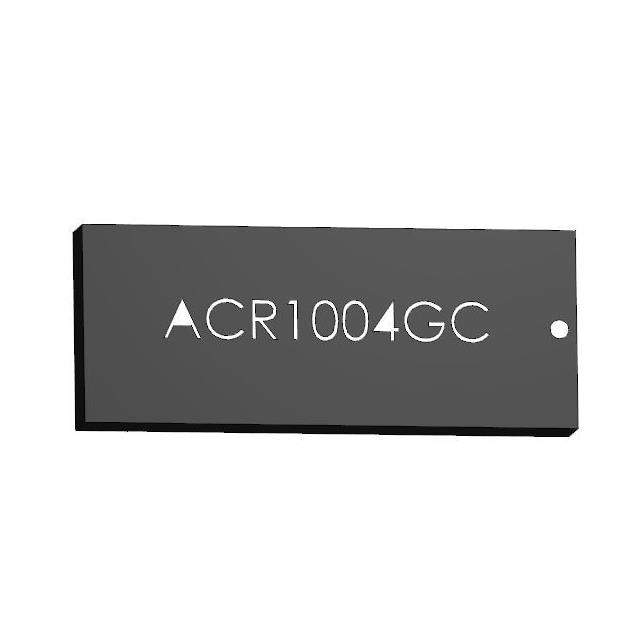

ACR1004GC
GNSS+GPS(L5) MULTIBAND CHIP ANT

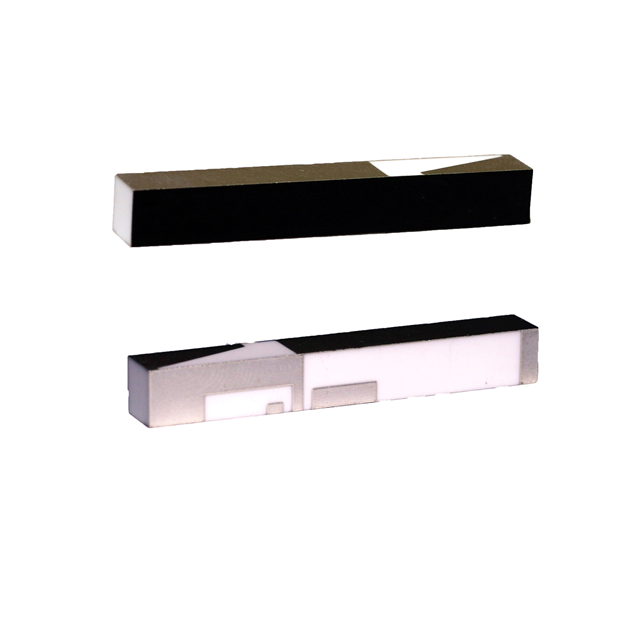

ACR3705LZ
