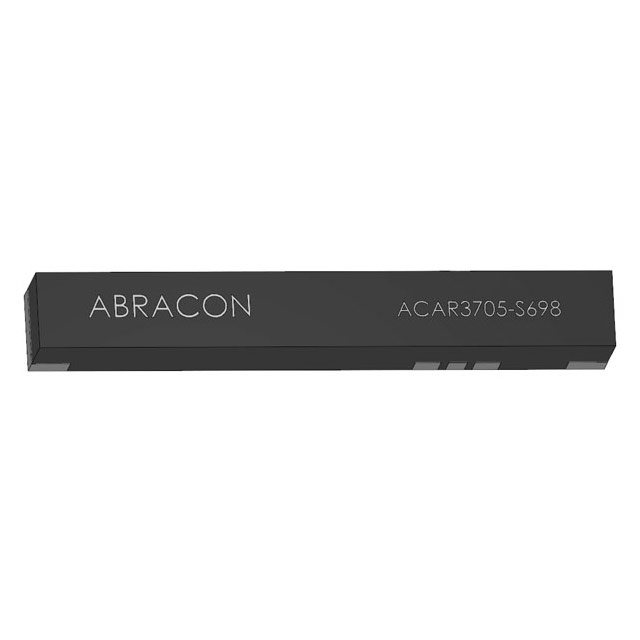

ACAR3705-S698
4G/LTE CERAMIC CHIP ANTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 2G, 3G, 4G, GSM, LTE Chip Solder Surface Mount
Additional Information
Series: ACARRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz |
| Applications | 2G, 3G, 4G, GSM, LTE |
| Gain | -1.13dBi, -3.77dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | 4.5 |
| Antenna Type | Chip |
| Height (Max) | 0.197"" (5.00mm) |
| Return Loss | -4.34dB, 4.62dB, -6.49dB, -8.49dB, -8.5dB, -13.87dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 830MHz, 1.94GHz, 2.6GHz |
| RF Family/Standard | Cellular |
