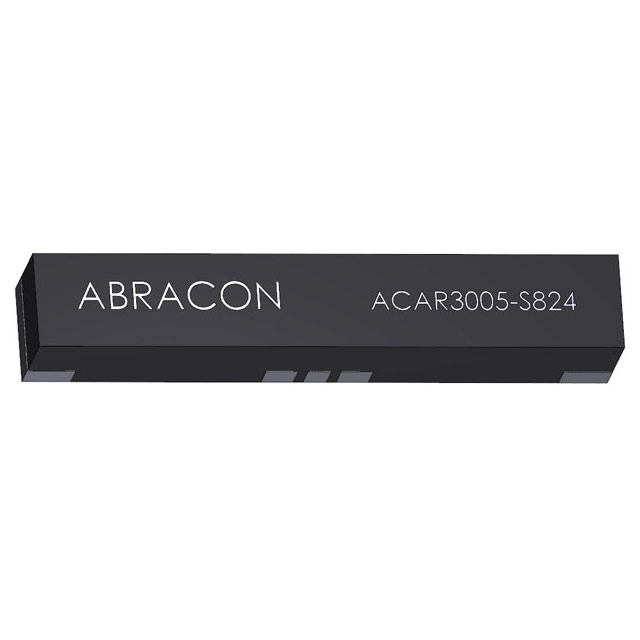

ACAR3005-S824
2G/3G/GSM CERAMIC CHIP ANTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 2G, 3G, DCS, GSM, PCS, UMTS Chip Solder Surface Mount
Additional Information
Series: ACARRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | 2G, 3G, DCS, GSM, PCS, UMTS |
| Gain | -0.18dBi, 0.1dBi, 0.55dBi, 0.77dBi, 1.78dBi, 2.08dBi, 2.12dBi, 2.7dBi, 3.03dBi, 3.12dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.197"" (5.00mm) |
| Return Loss | - |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 892MHz, 1.94GHz |
| RF Family/Standard | Cellular |
