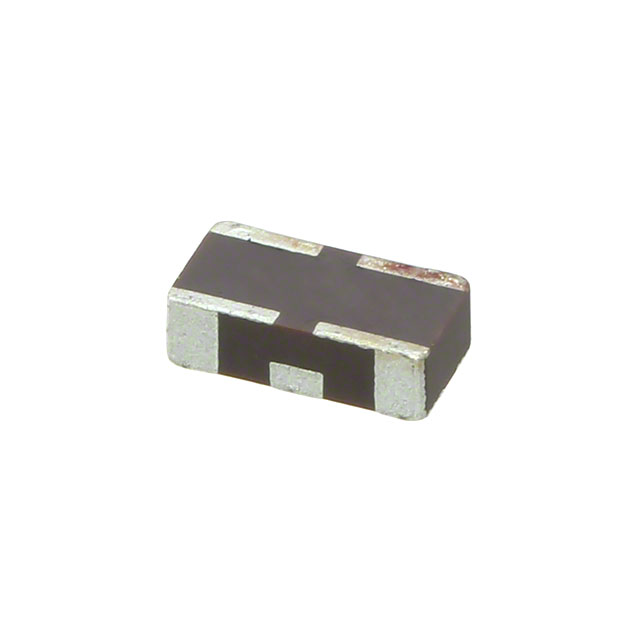

ACA-108-T
RF ANT 1.575GHZ/1.8GHZ CHIP SLDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC ACA-108-T is a chip antenna designed for surface mount applications. This component operates across a wide frequency range from 1.55GHz to 2.7GHz, with key center frequencies at 1.575GHz and 1.8GHz, and also supporting 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, and 2.6GHz. It offers a gain of 2.98dBi and a VSWR of 3. The antenna is suitable for multiple bands and is terminated via solder. Its compact form factor features a maximum height of 0.047 inches (1.20mm). This versatile component is utilized in applications such as Bluetooth, GPS, WCDMA, and WiMax, finding use in the telecommunications and navigation industries. The ACA-108-T is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 1.55GHz ~ 2.7GHz |
| Applications | Bluetooth, GPS, WCDMA, WiMax™ |
| Gain | 2.98dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 4 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi |
