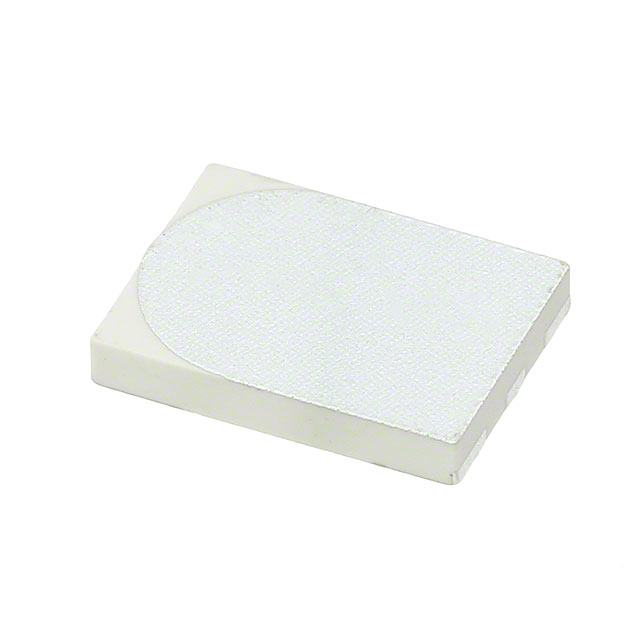

ACA-107-T
RF ANT 5.2GHZ CHIP SOLDER SMDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC ACA-107-T is a compact chip antenna designed for surface mount applications. This single-band antenna operates in the 5.2GHz frequency band, with a broad frequency range spanning 3.2GHz to 7.2GHz, classifying it within the SHF (Super High Frequency) group. It offers a gain of 4.16dBi and a VSWR of 5, suitable for demanding wireless communication systems. The antenna features a low profile, with a maximum height of 0.047 inches (1.20mm), and is supplied on tape and reel for efficient automated assembly. Its solder termination ensures a robust connection for reliable performance. This component is frequently utilized in networking and wireless infrastructure applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 3.2GHz ~ 7.2GHz |
| Applications | - |
| Gain | 4.16dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 5 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | SHF (f > 4GHz) |
| Frequency (Center/Band) | 5.2GHz |
| RF Family/Standard | - |
