ACA-106-T
RF ANT 1.56GHZ/1.575GHZ CHIP SLDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

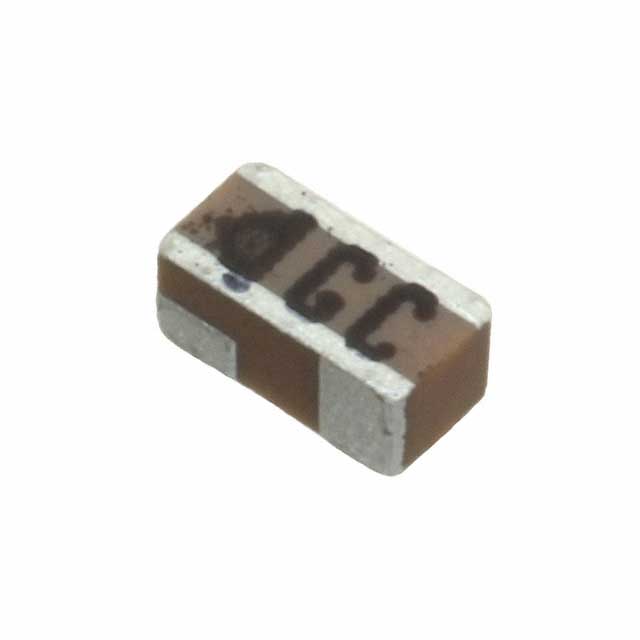

Abracon LLC ACA-106-T is a surface mount chip antenna designed for GNSS applications. This component operates across the UHF frequency group, supporting L-band navigation systems including Beidou, GLONASS, and GPS. The antenna exhibits a frequency range of 1.56GHz to 1.61GHz, with center frequencies specified at 1.56GHz, 1.575GHz, and 1.585GHz. It achieves a gain of 3.28dBi and a VSWR of 3. The compact design features a maximum height of 0.047 inches (1.20mm) and is supplied in Tape & Reel packaging for automated assembly. This antenna is a suitable choice for navigation systems in automotive, defense, and telecommunications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 1.56GHz ~ 1.61GHz |
| Applications | Beidou, GLONASS, GNSS, GPS |
| Gain | 3.28dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 4 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.56GHz, 1.575GHz, 1.585GHz |
| RF Family/Standard | Navigation |
