ACA-105-T

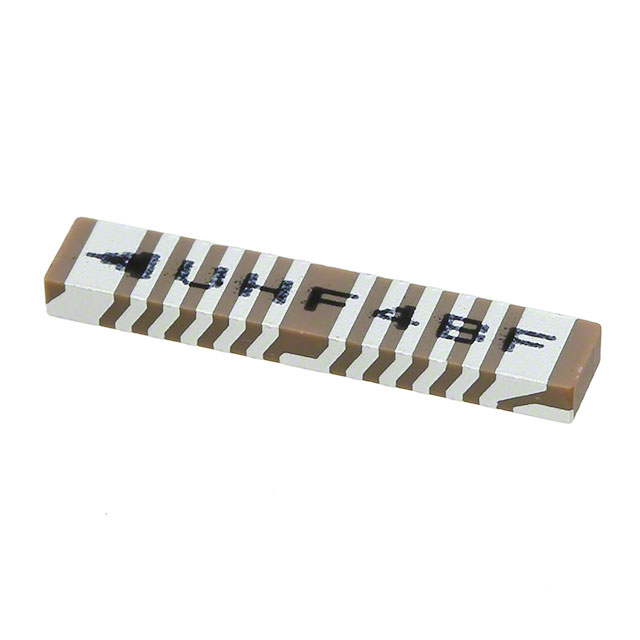

RF ANT 490MHZ/783MHZ CHIP SLDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC's ACA-105-T is a compact, surface-mount chip antenna designed for multi-band RF applications. This component operates across four distinct frequency bands: 470-510MHz, 779-787MHz, 858-878MHz, and 902-928MHz, with center frequencies at 490MHz, 783MHz, 868MHz, and 915MHz. It falls within the UHF frequency group (300MHz ~ 1GHz) and offers a typical gain of 3.28dBi. The ACA-105-T is suitable for soldered termination and features a low profile with a maximum height of 0.055 inches (1.40mm). Its versatile frequency coverage makes it applicable in WLAN systems and other wireless communication designs requiring operation in the UHF spectrum. Supplied in tape and reel packaging, this antenna is engineered for efficient automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 470MHz ~ 510MHz, 779MHz ~ 787MHz, 858MHz ~ 878MHz, 902MHz ~ 928MHz |
| Applications | WLAN |
| Gain | 3.28dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 4 |
| VSWR | 3, 2, 2, 2 |
| Antenna Type | Chip |
| Height (Max) | 0.055"" (1.40mm) |
| Return Loss | - |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 490MHz, 783MHz, 868MHz, 915MHz |
| RF Family/Standard | WiFi |
