ACA-104-T
RF ANT 1.575GHZ CHIP SOLDER SMDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

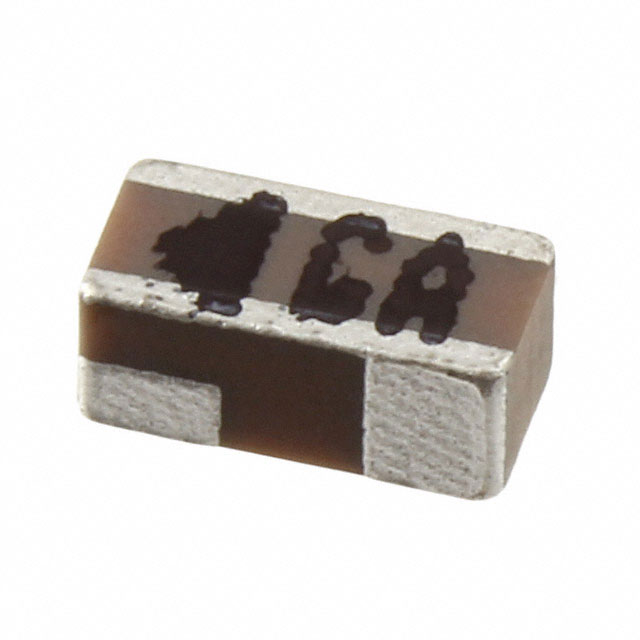

Abracon LLC ACA-104-T is a surface-mount chip antenna designed for GPS applications operating at a center frequency of 1.575GHz within the UHF frequency group (1GHz ~ 2GHz). This compact antenna offers a frequency range of 1.57GHz to 1.58GHz and a gain of 1.73dBi. The ACA-104-T features a maximum height of 0.047 inches (1.20mm) and is terminated for solder connection. It is a single-band component supporting navigation standards and is supplied on tape and reel. The VSWR for this component is rated at 3. This antenna is suitable for integration into portable navigation devices and other location-aware systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 1.57GHz ~ 1.58GHz |
| Applications | GPS |
| Gain | 1.73dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz |
| RF Family/Standard | Navigation |
