ACA-103-T
RF ANT 2.4GHZ/5.5GHZ CHIP SLDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

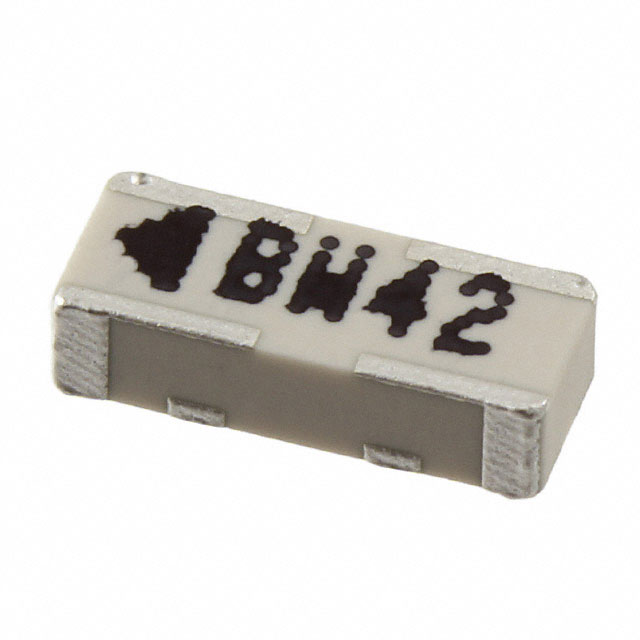

Abracon LLC's ACA-103-T is a surface-mount chip antenna designed for dual-band operation across the 2.4GHz and 5.5GHz frequencies. This component supports both the 2.4GHz to 2.485GHz and 5.15GHz to 5.825GHz frequency ranges, making it suitable for applications utilizing Bluetooth and WLAN standards. The ACA-103-T features a compact form factor with a maximum height of 0.047 inches (1.20mm), facilitating integration into space-constrained designs. It is supplied on tape and reel packaging for automated assembly. The antenna exhibits a VSWR of 3 and a gain of -1.37dBi. This component is frequently employed in wireless connectivity modules for consumer electronics and industrial IoT systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz |
| Applications | Bluetooth, WLAN |
| Gain | -1.37dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| RF Family/Standard | Bluetooth, WiFi |
