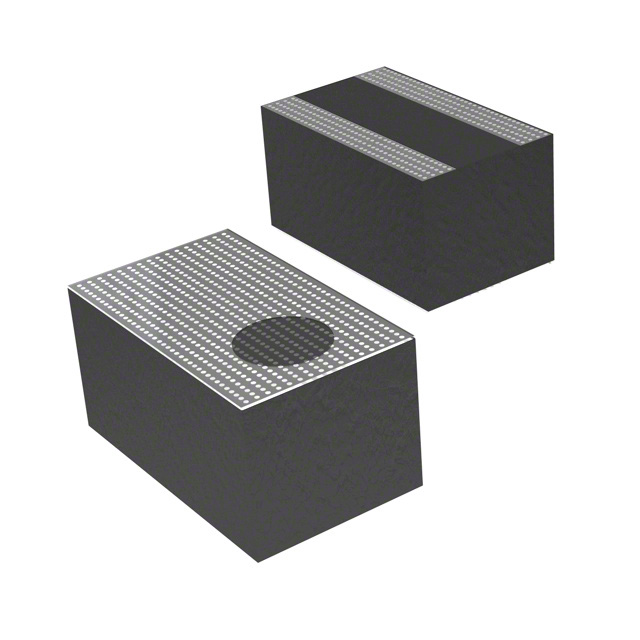

ACA-102-T
RF ANT 2.4GHZ CHIP SOLDER SMDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC's ACA-102-T is a surface-mount chip antenna designed for 2.4GHz wireless applications. This component operates within the UHF frequency band, with a specified range of 2.4GHz to 2.485GHz, making it suitable for Bluetooth and WLAN standards. The antenna offers a typical gain of 0.6dBi and a VSWR of 2.6. Its compact form factor, with a maximum height of 1.00mm, facilitates integration into space-constrained designs. The ACA-102-T is supplied on tape and reel for efficient automated assembly. This antenna is commonly utilized in consumer electronics, industrial automation, and telecommunications equipment requiring robust 802.11b/g/n and Bluetooth connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 2.4GHz ~ 2.485GHz |
| Applications | Bluetooth, WLAN |
| Gain | 0.6dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 2.6 |
| Antenna Type | Chip |
| Height (Max) | 0.039"" (1.00mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz |
| RF Family/Standard | Bluetooth, WiFi |
