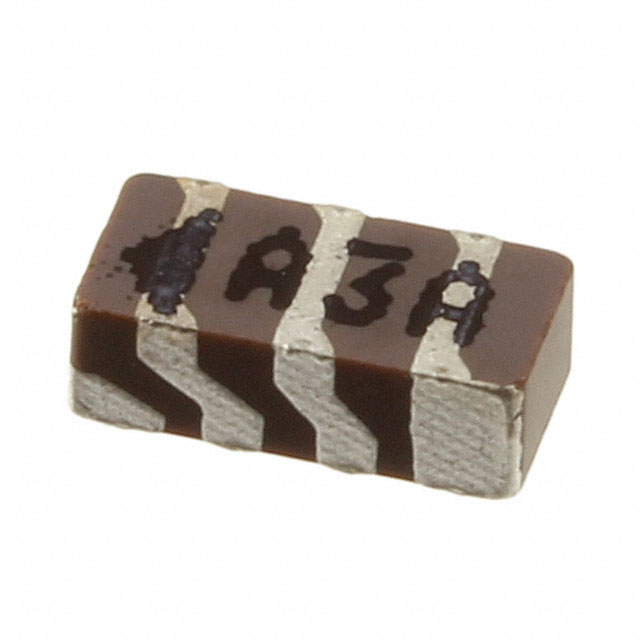

ACA-101-T
RF ANT 2.4GHZ CHIP SOLDER SMDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC ACA-101-T is a chip antenna designed for 2.4GHz wireless applications. This surface mount component offers a compact footprint with a maximum height of 0.047 inches (1.20mm) and is supplied in Tape & Reel packaging. Optimized for the 2.4GHz to 2.485GHz frequency range, it provides a typical gain of 1.09dBi and a VSWR of 3. The ACA-101-T is suitable for integration into devices utilizing Bluetooth and WLAN standards. Its solder termination ensures a robust connection for reliable performance in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 2.4GHz ~ 2.485GHz |
| Applications | Bluetooth, WLAN |
| Gain | 1.09dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 3 |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz |
| RF Family/Standard | Bluetooth, WiFi |
