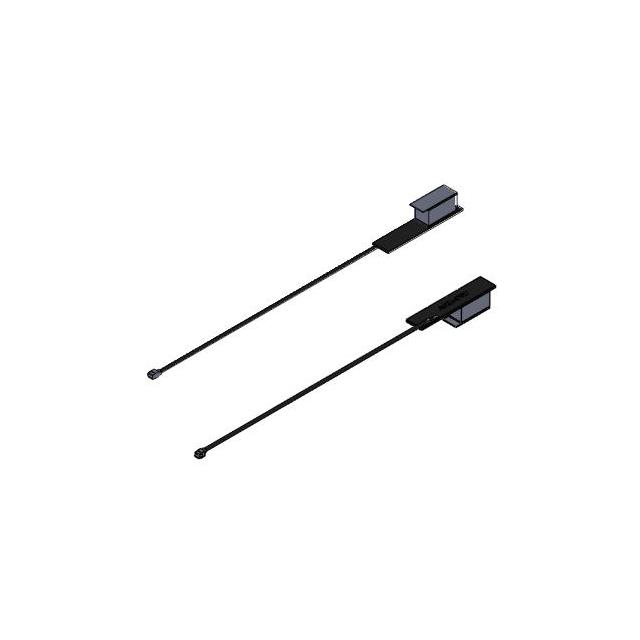

ABR3407I9-0100S
RF ANT 915MHZ PCB IPEXManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC's ABR3407I9-0100S is a PCB trace antenna designed for 915MHz ISM band applications, including LoRa, LPWAN, and Sigfox communication protocols. This antenna operates within the UHF frequency group, specifically spanning the 902MHz to 928MHz range, with a center frequency of 915MHz. It features an adhesive mounting type for straightforward integration and a compact profile with a maximum height of 0.031 inches. The ABR3407I9-0100S terminates with an I-PEX MHF1 (U.FL) connector and includes a 100mm cable. Its design delivers a gain of 1.84dBi and a return loss of -12dB, making it suitable for wireless modules and devices in industrial IoT, smart agriculture, and asset tracking sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 100mm |
| Packaging | Box |
| Mounting Type | Adhesive |
| Frequency Range | 902MHz ~ 928MHz |
| Applications | ISM, LoRa, LPWAN, Sigfox |
| Gain | 1.84dBi |
| Termination | I-PEX MHF1 (U.FL) |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | - |
| Antenna Type | PCB Trace |
| Height (Max) | 0.031"" (0.80mm) |
| Return Loss | -12dB |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 915MHz |
| RF Family/Standard | General ISM |
