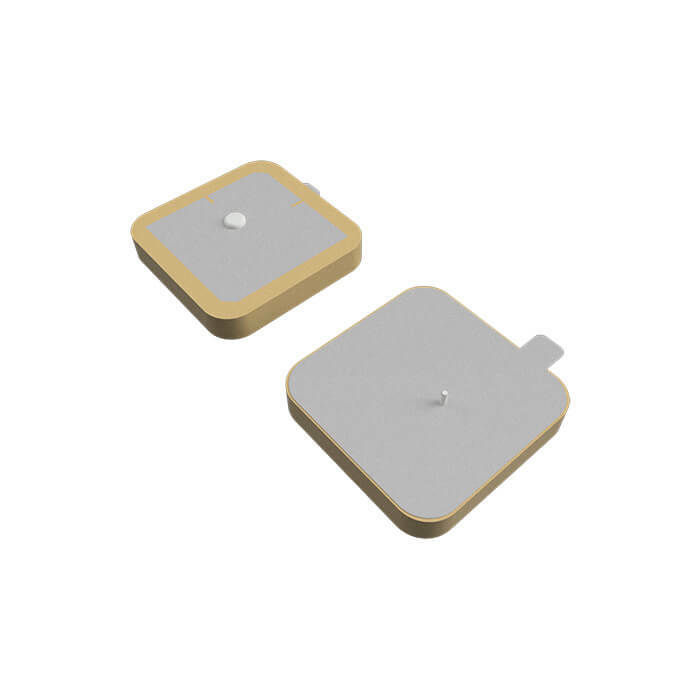

AANI-PP-0055
RF ANT PASSIVE CERAMIC PATCH GNManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Galileo, GLONASS, GNSS, GPS, QZSS, SBAS Ceramic Patch Solder Through Hole
Additional Information
Series: AANI-PPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Frequency Range | 1.598GHz ~ 1.609GHz |
| Applications | Galileo, GLONASS, GNSS, GPS, QZSS, SBAS |
| Gain | 4dBic, 4dBic, 4dBic |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.157"" (4.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.603GHz |
| RF Family/Standard | Navigation |
| Grade | - |
| Qualification | - |
Request a Quote
