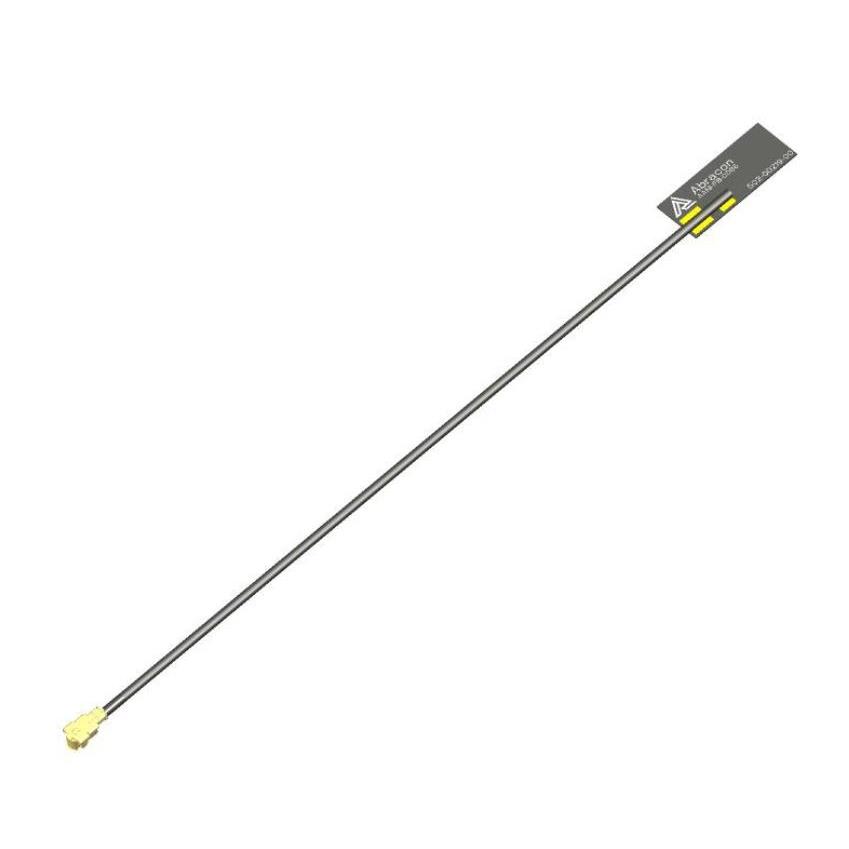

AANI-FB-0086-0100W
FPC ANT WI-FI6E/7 TRI-BAND 2.4/Manufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ Flat Patch I-PEX MHF4 (U.FL) Adhesive
Additional Information
Series: AANI-FBRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 100mm |
| Packaging | Bag |
| Mounting Type | Adhesive |
| Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Applications | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Gain | 3dBi, 3.6dBi, 2.7dBi |
| Termination | I-PEX MHF4 (U.FL) |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Flat Patch |
| Height (Max) | 0.008"" (0.20mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.44GHz, 5.5GHz, 6.525GHz |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Grade | - |
| Qualification | - |
