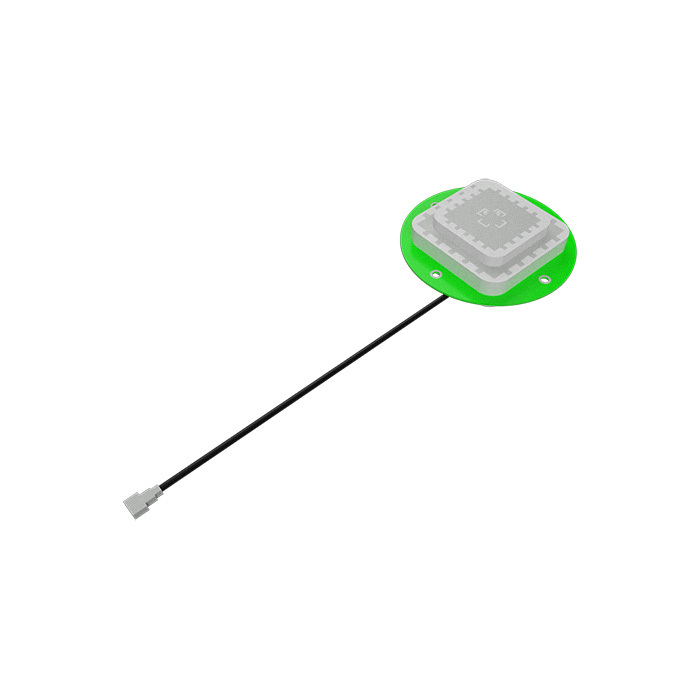

AANI-AP-0035
RF ANT ACTIVE PATCH GNSS L1/L2Manufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch MMCX Male Through Hole
Additional Information
Series: AANI-APRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 120mm, LNA |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Frequency Range | 1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | 5dBic, 4.8dBic |
| Termination | MMCX Male |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 2 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.657"" (16.70mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz |
| RF Family/Standard | Navigation |
| Grade | - |
| Qualification | - |
Request a Quote
