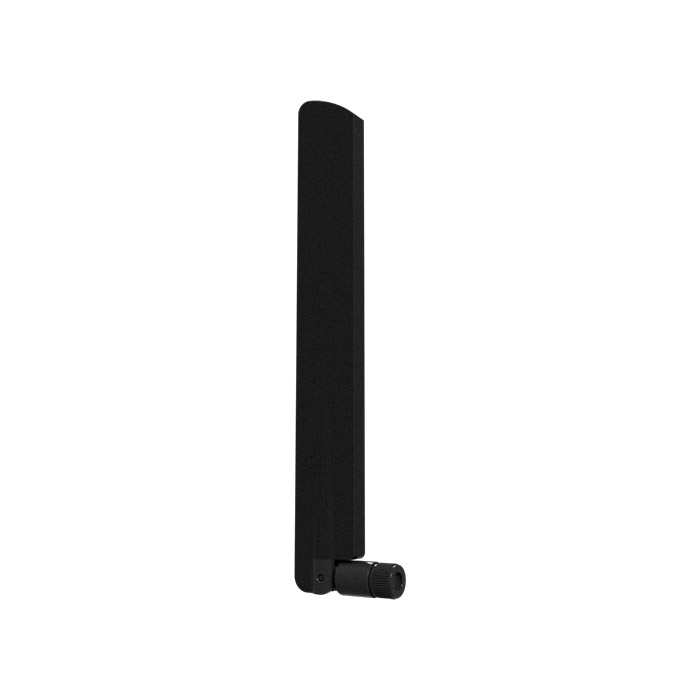

AANE-WH-0150-SIP
RF ANT WI-FI6E/7 WATERPROOF WHIPManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ Whip, Tilt SMA Male Connector Mount
Additional Information
Series: AANE-WHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Connector Mount |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Applications | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
| Gain | 2.4dBi, 4.4dBi, 4.1dBi |
| Termination | SMA Male |
| Ingress Protection | IP65 |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Whip, Tilt |
| Height (Max) | 8.740"" (222.00mm) |
| Return Loss | 10dB |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.525GHz |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Grade | - |
| Power - Max | 5 W |
| Qualification | - |
