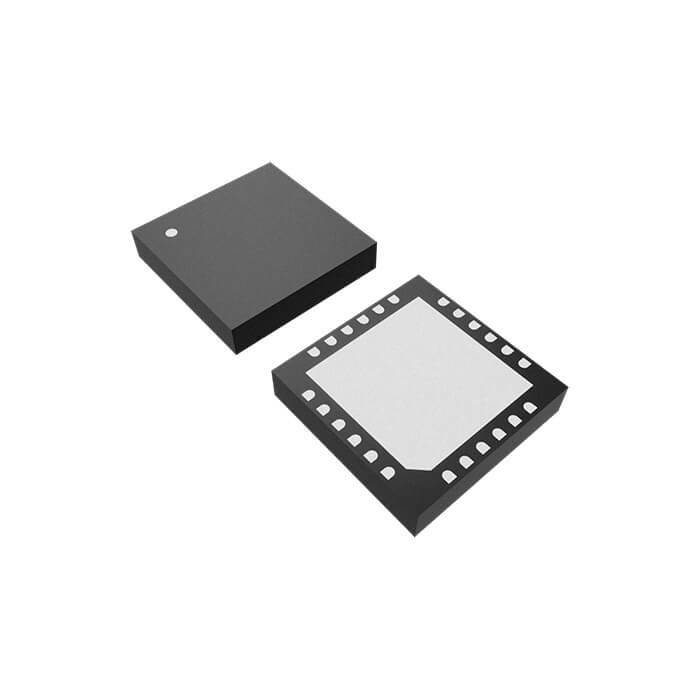

ALND-WB-0010
ULTRA LOW-NOISE LNA 3.0GHZ ~ 4.0Manufacturer: Abracon LLC
Categories: RF Amplifiers
Quality Control: Learn More
Abracon LLC ALND-WB-0010 is an ultra-low-noise RF amplifier IC operating from 3GHz to 4GHz. This component features a typical gain of 32.5dB and a noise figure of 1.25dB, making it suitable for demanding EW, Radar, SATCOM, and VSAT applications. The device delivers 18dBm P1dB and is supplied in a 24-QFN (6x6) package with an exposed pad for optimal thermal performance. It supports supply voltages of 1V and 4V, with a current consumption of 140mA. The ALND-WB-0010 is designed for surface mount applications and is provided in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 3GHz ~ 4GHz |
| RF Type | EW, Radar, SATCOM, VSAT |
| Voltage - Supply | 1V, 4V |
| Gain | 32.5dB |
| Current - Supply | 140mA |
| Noise Figure | 1.25dB |
| P1dB | 18dBm |
| Test Frequency | - |
| Supplier Device Package | 24-QFN (6x6) |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy
ALND-WB-0012
ULTRA LOW-NOISE LNA 8.5GHZ ~ 10.
ALND-WB-0009
ULTRA LOW-NOISE LNA 2.7GHZ ~ 3.7

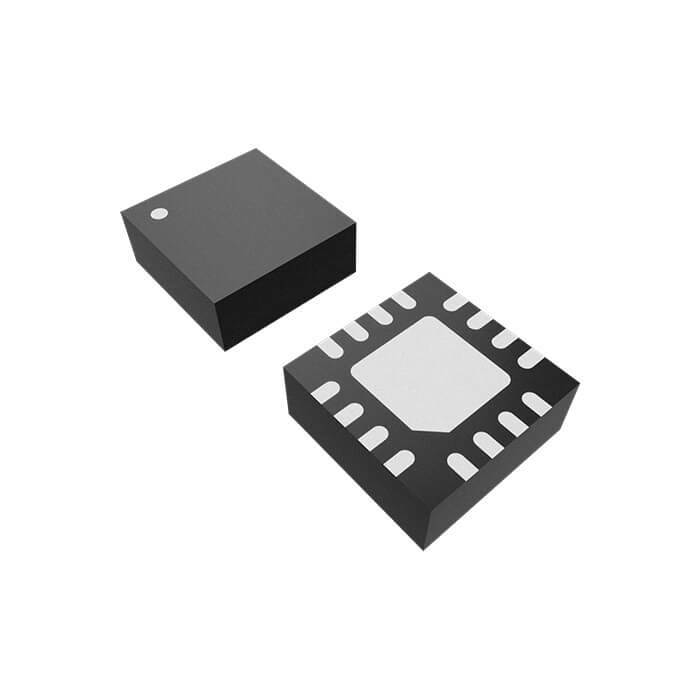

ALND-WB-0008
