AWCR-3.58MD
CERAMIC RES 3.5800MHZ 30PF T/HManufacturer: Abracon LLC
Categories: Resonators
Quality Control: Learn More

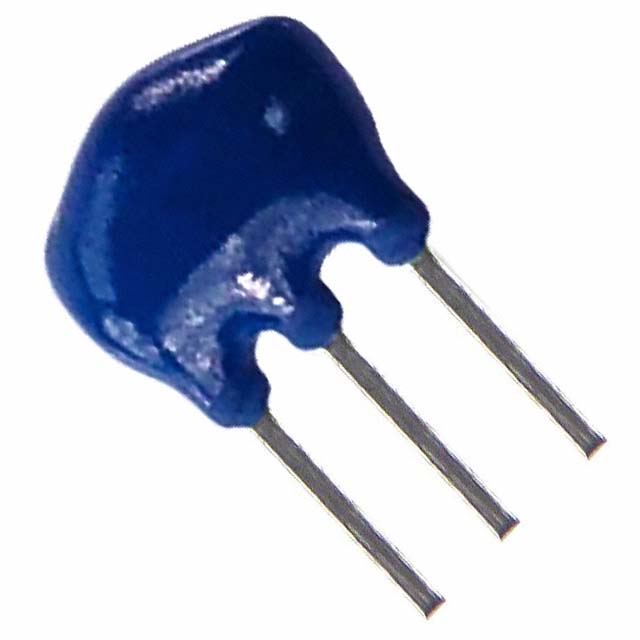

Abracon LLC AWCR series ceramic resonator, part number AWCR-3-58MD. This through-hole component operates at a fundamental frequency of 3.58 MHz with a tight frequency tolerance of ±0.3% and a capacitance of 30 pF. It features a built-in capacitor and an impedance of 30 Ohms. The device is designed for operation within an ambient temperature range of -25°C to 85°C. Its package is radial with a 2.50mm pitch, and the dimensions are 10.00mm L x 5.00mm W x 8.00mm H. This resonator is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: AWCRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Built in Capacitor |
| Packaging | Bulk |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.394"" L x 0.197"" W (10.00mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | -25°C ~ 85°C |
| Frequency Stability | ±0.3% |
| Height | 0.315"" (8.00mm) |
| Frequency Tolerance | ±0.5% |
| Capacitance | 30 pF |
| Impedance | 30 Ohms |
| Frequency | 3.58 MHz |
