ALANC10001-CDB3DT
LAN SGL XFMR 8PINManufacturer: Abracon LLC
Categories: Pulse Transformers
Quality Control: Learn More

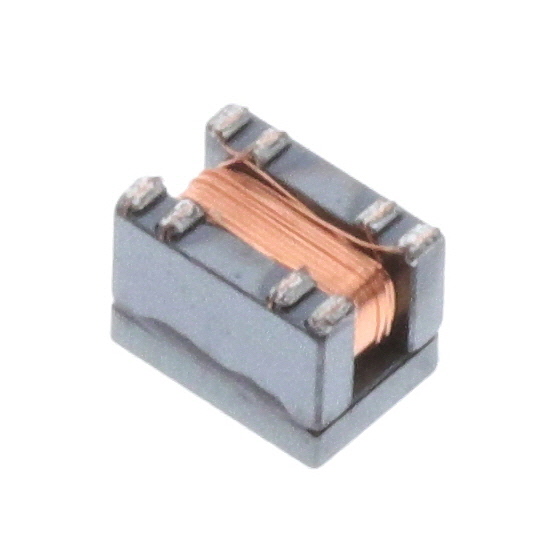

Abracon LLC ALANC10001-CDB3DT is a 200µH LAN pulse transformer designed for 10/100/1000 Base-T Ethernet applications. This surface mount component features a 1CT:1CT turns ratio and is supplied in Tape & Reel packaging. With dimensions of 0.177" L x 0.126" W (4.50mm x 3.20mm) and a maximum seated height of 0.138" (3.50mm), it is suitable for compact board designs. The operating temperature range is -40°C to 85°C, ensuring reliable performance in various environments. This pulse transformer is commonly utilized in networking equipment, industrial automation, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Inductance | 200µH |
| Size / Dimension | 0.177"" L x 0.126"" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Transformer Type | LAN 10/100/1000 Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| ET (Volt-Time) | - |
| Height - Seated (Max) | 0.138"" (3.50mm) |
