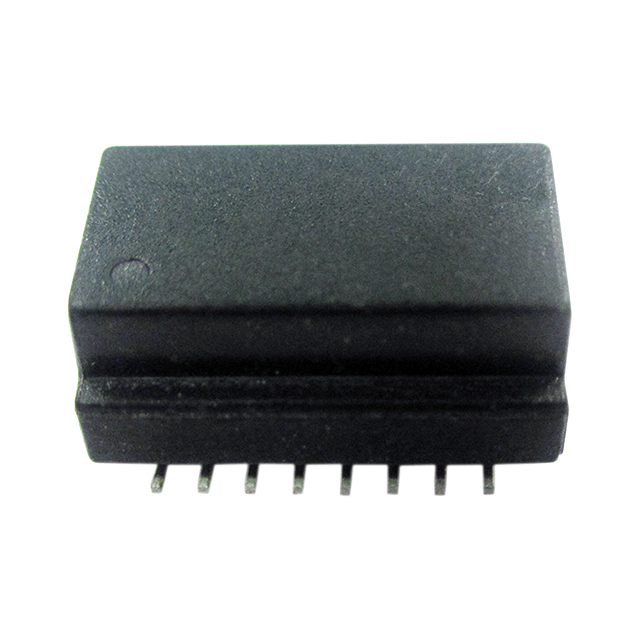

ALAN-505
PULSE XFMR 1CT:1CT 350UHManufacturer: Abracon LLC
Categories: Pulse Transformers
Quality Control: Learn More
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Additional Information
Series: ALAN-505RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Inductance | 350µH |
| Size / Dimension | 0.500"" L x 0.346"" W (12.70mm x 8.80mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| ET (Volt-Time) | - |
| Height - Seated (Max) | 0.234"" (5.95mm) |
Request a Quote
