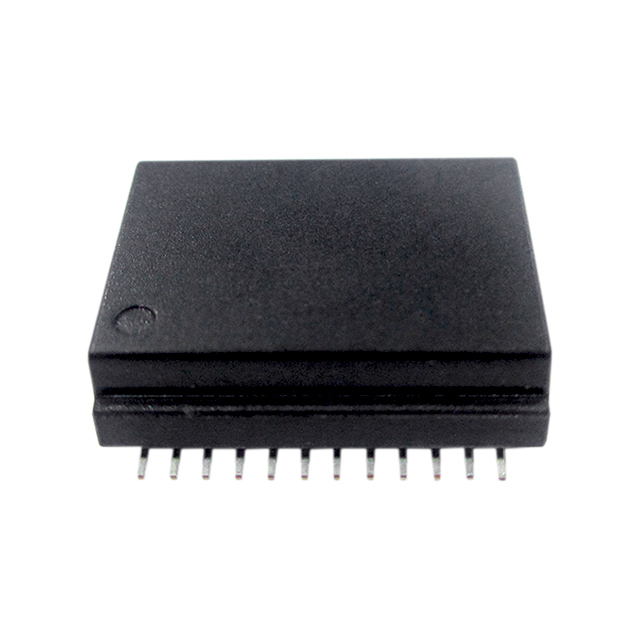

ALAN-2401-T
PULSE XFMR 1CT:1CT 120UHManufacturer: Abracon LLC
Categories: Pulse Transformers
Quality Control: Learn More
120µH LAN 10G Base-T Pulse Transformer 1CT:1CT Surface Mount
Additional Information
Series: ALAN-2401RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Inductance | 120µH |
| Size / Dimension | 0.689"" L x 0.559"" W (17.50mm x 14.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Transformer Type | LAN 10G Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| ET (Volt-Time) | - |
| Height - Seated (Max) | 0.219"" (5.55mm) |
