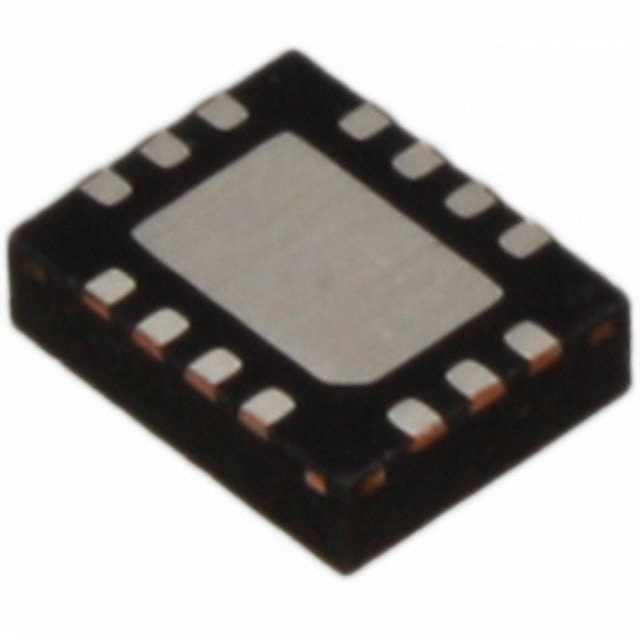

ASEMDLC-LR
LVDS-CMOS DUAL OUTPUT ULTRA MINIManufacturer: Abracon LLC
Categories: Pin Configurable/Selectable Oscillators
Quality Control: Learn More
CMOS, LVDS XO (Standard) Pin Configurable Oscillator 2.25V ~ 3.6V 14-VFQFN Exposed Pad
Additional Information
Series: ASEMDLC, Pure Silicon™RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-VFQFN Exposed Pad |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Output | CMOS, LVDS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 2.25V ~ 3.6V |
| Height | 0.035"" (0.90mm) |
| Current - Supply (Max) | 49mA (Typ) |
| Frequency - Output 1 | 74.25MHz, 100MHz, 125MHz, 148.5MHz, 150MHz, 156.25MHz |
| Frequency - Output 2 | 25MHz, 50MHz, 74.25MHz, 75MHz, 125MHz |
| Base Resonator | MEMS |
