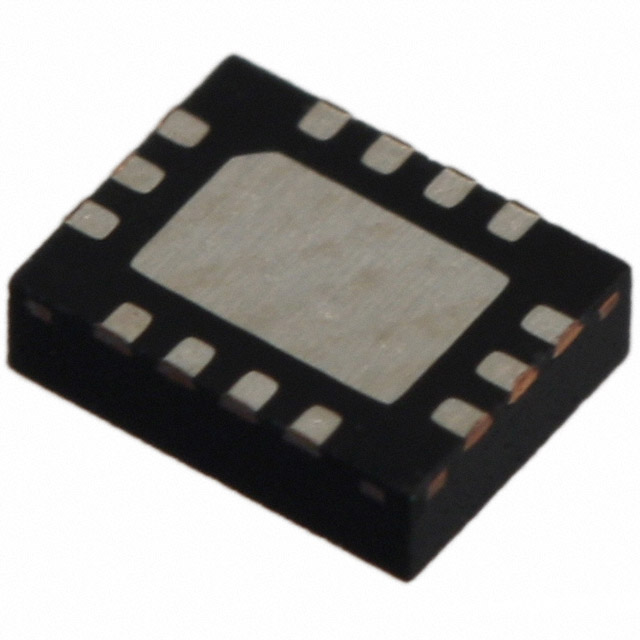

ASEMCHC
MEMS OSC XO 2.25V-3.6V 14VFQFNManufacturer: Abracon LLC
Categories: Pin Configurable/Selectable Oscillators
Quality Control: Learn More
Abracon LLC ASEMCHC, Pure Silicon™ series MEMS XO oscillator. This HCSL output device operates from a 2.25V to 3.6V supply, drawing a maximum of 42mA. It offers selectable output frequencies of 100MHz, 125MHz, 156.25MHz, and 200MHz. The component features an enable/disable function and a frequency stability of ±50ppm. Encased in a 14-VFQFN exposed pad package (0.126" x 0.098"), it has a height of 0.035". Typical applications include high-speed data communication, networking infrastructure, and industrial control systems. The operating temperature range is -20°C to 70°C.
Additional Information
Series: ASEMCHC, Pure Silicon™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-VFQFN Exposed Pad |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Output | HCSL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 2.25V ~ 3.6V |
| Height | 0.035"" (0.90mm) |
| Current - Supply (Max) | 42mA |
| Frequency - Output 1 | 100MHz, 125MHz, 156.25MHz, 200MHz |
| Frequency - Output 2 | - |
| Base Resonator | MEMS |
