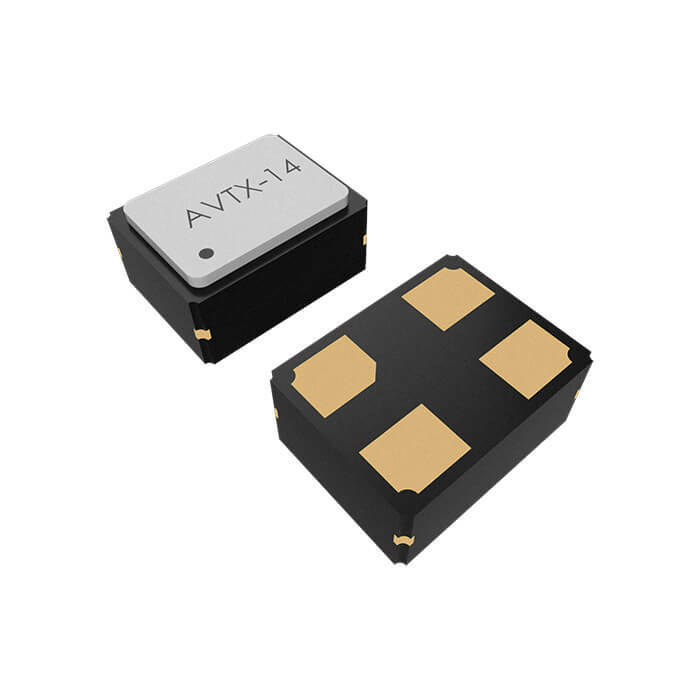

AVTX-14-E-38.400MHZ-F05-T
XTAL OSC VCTCXO 38.4 MHZ CLPSNWManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
38.4 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
Additional Information
Series: ATX-14RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.065"" L x 0.049"" W (1.65mm x 1.25mm) |
| Mounting Type | Surface Mount |
| Output | Clipped Sine Wave |
| Function | - |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±500ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2.5mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 38.4 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

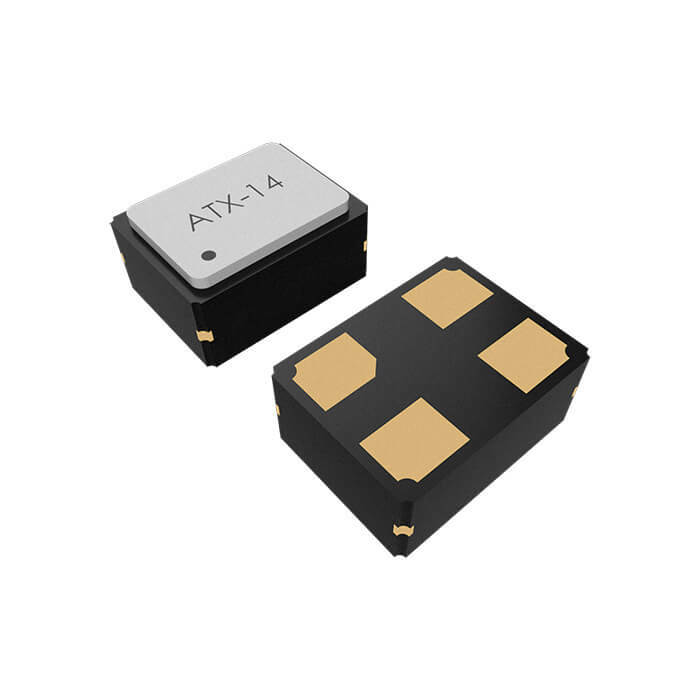

ATX-14-F-26.000MHZ-F05-T
