ASVTX-13-A-19.200MHZ-D15-T
XTAL OSC VCTCXO 19.2000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

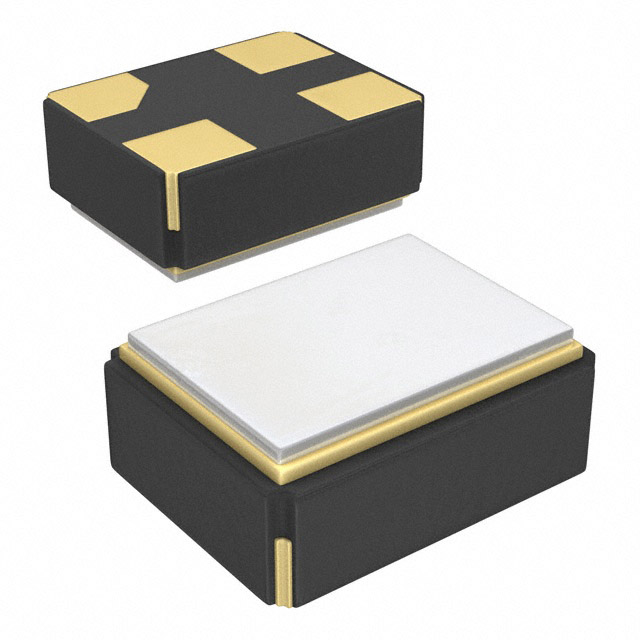

Abracon LLC ASVTX-13 series Voltage Controlled Crystal Oscillator (VCTCXO) operating at 19.2 MHz. This surface mount component offers a frequency stability of ±1.5ppm within an operating temperature range of -30°C to 85°C. The ASVTX-13-A-19-200MHZ-D15-T features a clipped sine wave output and operates from a 3V supply, drawing a maximum of 1.5mA. Its compact 4-SMD, No Lead package measures 2.00mm x 1.60mm with a maximum seated height of 0.80mm. This VCTCXO is commonly utilized in telecommunications, industrial control systems, and consumer electronics. Supplied in Tape & Reel.
Additional Information
Series: ASVTX-13RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Output | Clipped Sine Wave |
| Function | - |
| Type | VCTCXO |
| Operating Temperature | -30°C ~ 85°C |
| Frequency Stability | ±1.5ppm |
| Voltage - Supply | 3V |
| Ratings | - |
| Current - Supply (Max) | 1.5mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 19.2 MHz |
| Base Resonator | Crystal |
