ASVTX-09-20.000MHZ-T
XTAL OSC VCTCXO 20.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
20 MHz VCTCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
Additional Information
Series: ASVTX-09RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | Clipped Sine Wave |
| Function | - |
| Type | VCTCXO |
| Operating Temperature | -30°C ~ 75°C |
| Frequency Stability | ±2.5ppm |
| Voltage - Supply | 3V |
| Ratings | - |
| Current - Supply (Max) | 2mA |
| Height - Seated (Max) | 0.063"" (1.60mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 20 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

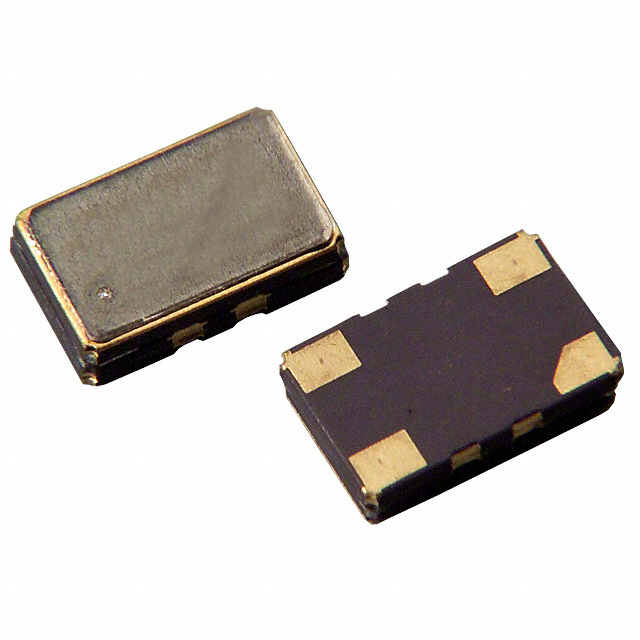

ASVTX-09-12.800MHZ-T
