ASTXR-12-26.000MHZ-511911
XTAL OSC TCXO 26.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTXR Series TCXO oscillator, part number ASTXR-12-26-000MHZ-511911, provides a stable 26 MHz output with a frequency stability of ±500ppb. This component features a clipped sine wave output and an enable/disable function. Operating within a 1.75V to 2V supply range, it draws a maximum of 1.5mA. The ASTXR-12-26-000MHZ-511911 is housed in a compact 6-SMD, No Lead package with dimensions of 0.098" L x 0.079" W (2.50mm x 2.00mm) and a maximum seated height of 0.035" (0.90mm). It is designed for surface mounting and operates across a temperature range of -40°C to 85°C. This TCXO is suitable for applications in telecommunications, industrial control, and consumer electronics.
Additional Information
Series: ASTXRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.098"" L x 0.079"" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Output | Clipped Sine Wave |
| Function | Enable/Disable |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±500ppb |
| Voltage - Supply | 1.75V ~ 2V |
| Ratings | - |
| Current - Supply (Max) | 1.5mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 26 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

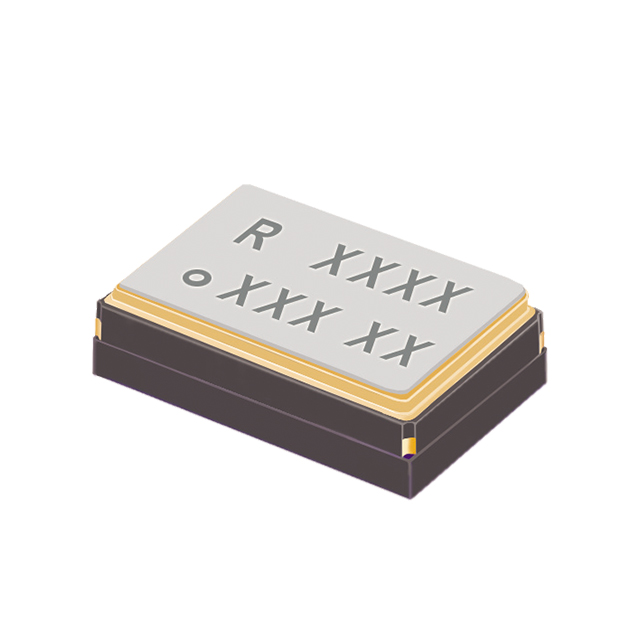

ASTXR-12-19.200MHZ-511890
