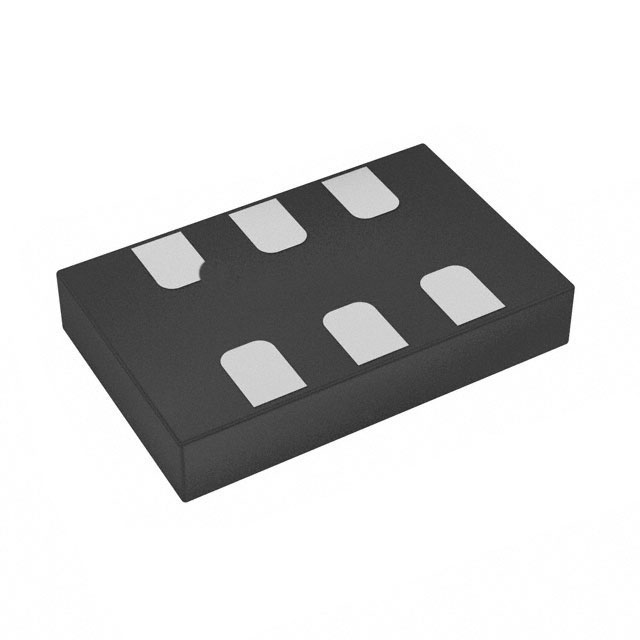

ASTMUPLPFL-125.000MHZ-LJ-E
MEMS OSC XO 125.0000MHZ LVPECLManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTMUPLP series MEMS oscillator, part number ASTMUPLPFL-125-000MHZ-LJ-E, offers a 125 MHz output frequency with LVPECL signaling. This XO (Standard) oscillator operates within a supply voltage range of 2.25V to 3.63V and features an enable/disable function. The component boasts a frequency stability of ±20ppm over an operating temperature range of -40°C to 85°C. Designed for surface mounting, it is housed in a 6-SMD, No Lead package with dimensions of 0.197" L x 0.126" W (5.00mm x 3.20mm) and a maximum seated height of 0.031" (0.80mm). The maximum supply current is 69mA. This device is suitable for applications in industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: ASTMUPLPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Voltage - Supply | 2.25V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 69mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 125 MHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

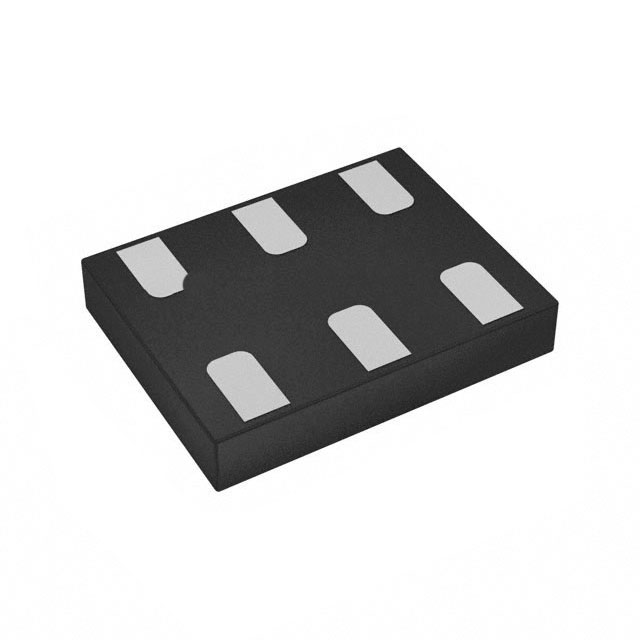

ASTMUPLPE-100.000MHZ-LJ-E
