ASTMUPLDFL-125.000MHZ-LJ-E-T3
MEMS OSC XO 125.0000MHZ LVDS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

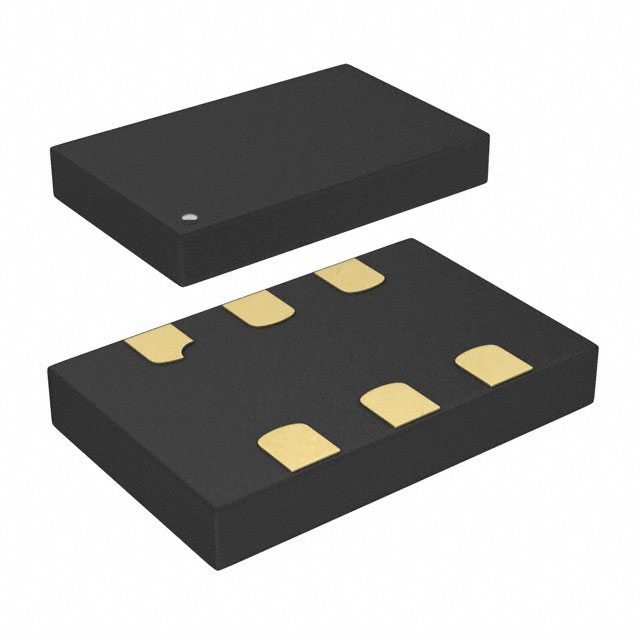

Abracon LLC ASTMUPLD series MEMS oscillator, part number ASTMUPLDFL-125-000MHZ-LJ-E-T3, offers a precise 125 MHz output with LVDS signaling. This surface-mount device operates within a 2.25V to 3.63V supply range and features an enable/disable function. The ASTMUPLD series provides a frequency stability of ±20ppm across an operating temperature range of -40°C to 85°C. Its compact 6-SMD, No Lead package measures 5.00mm x 3.20mm with a maximum seated height of 0.80mm. The maximum supply current is 55mA. This component is suitable for applications in telecommunications, industrial automation, and consumer electronics. It is supplied in Tape & Reel packaging.
Additional Information
Series: ASTMUPLDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Voltage - Supply | 2.25V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 55mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 125 MHz |
| Base Resonator | MEMS |
