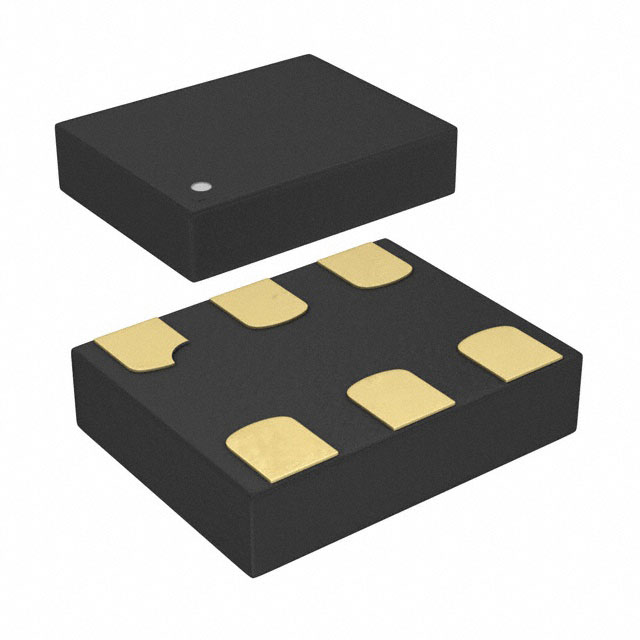

ASTMUPLDE-100.000MHZ-LJ-E-T
MEMS OSC XO 100.0000MHZ LVDS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTMUPLD Series MEMS XO Oscillator, part number ASTMUPLDE-100-000MHZ-LJ-E-T, provides a stable 100 MHz output with LVDS signaling. This surface-mount component features an enable/disable function and operates over a voltage range of 2.25V to 3.63V, with a maximum supply current of 55mA. The frequency stability is rated at ±20ppm across an operating temperature range of -40°C to 85°C. Its compact 3.20mm x 2.50mm footprint, with a maximum seated height of 0.80mm, makes it suitable for space-constrained applications. This device finds utility in networking, telecommunications, and industrial control systems. It is supplied in tape and reel packaging.
Additional Information
Series: ASTMUPLDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Voltage - Supply | 2.25V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 55mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | MEMS |
