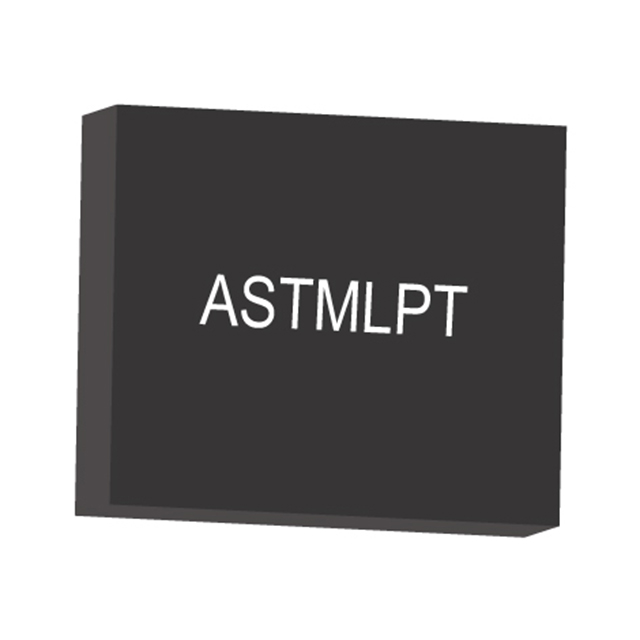

ASTMLPT-33-100.000MHZ-LQ-S-T
MEMS OSC XO 100.0000MHZ LVCMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTMLPT series MEMS XO oscillator, part number ASTMLPT-33-100-000MHZ-LQ-S-T. This 100 MHz LVCMOS output oscillator features a ±100ppm frequency stability and operates from a 3.3V supply. The component includes a standby (power down) function. It is housed in a 4-SMD, No Lead package with dimensions of 0.138" L x 0.118" W (3.50mm x 3.00mm) and a maximum seated height of 0.011" (0.28mm). The device's surface mount design is supplied in tape and reel. Typical applications include industrial control, consumer electronics, and telecommunications infrastructure. The maximum supply current is 4.1mA, and it operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: ASTMLPTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.138"" L x 0.118"" W (3.50mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | Standby (Power Down) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 4.1mA |
| Height - Seated (Max) | 0.011"" (0.28mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | MEMS |
