ASTMKH-32.768KHZ-MP-D26-T10
MEMS OSC XO 32.7680KHZ NANODRIVEManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTMKH series MEMS XO oscillator, part number ASTMKH-32-768KHZ-MP-D26-T10, offers a precise 32.768 kHz output with a NanoDrive™ implementation. This surface-mount component operates over a voltage range of 1.2V to 3.63V and features a low supply current of 1.3µA maximum. The frequency stability is rated at ±75ppm across an operating temperature range of -10°C to 70°C. Its compact 4-SMD, No Lead package, measuring 2.00mm x 1.20mm and a seated height of 0.60mm, makes it suitable for space-constrained applications. The ASTMKH-32-768KHZ-MP-D26-T10 is commonly found in consumer electronics, medical devices, and industrial control systems requiring reliable, low-power timing references. This component is supplied in Tape & Reel packaging.
Additional Information
Series: ASTMKHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079"" L x 0.047"" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Output | NanoDrive™ |
| Function | - |
| Type | XO (Standard) |
| Operating Temperature | -10°C ~ 70°C |
| Frequency Stability | ±75ppm |
| Voltage - Supply | 1.2V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 1.3µA |
| Height - Seated (Max) | 0.024"" (0.60mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

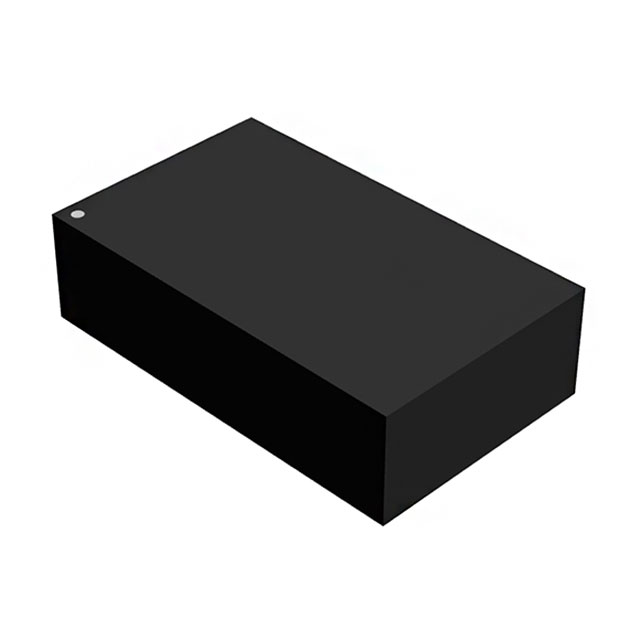

ASTMKH-32.768KHZ-LQ-AA3-T
