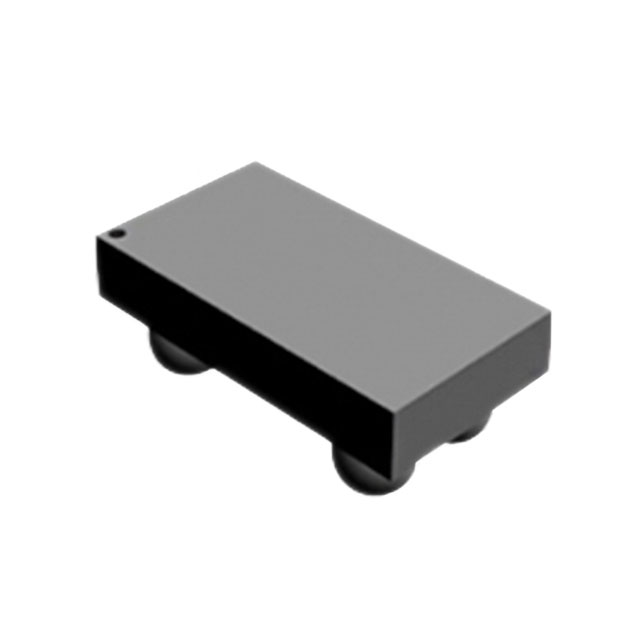

ASTMK-8.192KHZ-MP-DCC-J-T3
MEMS OSC XO 8.1920KHZ LVCMOS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
The Abracon LLC ASTMK Series oscillator, part number ASTMK-8-192KHZ-MP-DCC-J-T3, is a MEMS-based XO operating at 8.192 kHz. This LVCMOS output device features a compact 4-UFBGA, CSPBGA package with dimensions of 1.54mm x 0.84mm and a seated height of 0.60mm. Designed for surface mounting, it operates within a voltage supply range of 1.2V to 3.63V and draws a maximum supply current of 1.3µA. The frequency stability is rated at ±75ppm across an operating temperature range of -10°C to 70°C. This component is commonly utilized in portable electronics, industrial control systems, and communication infrastructure. The ASTMK-8-192KHZ-MP-DCC-J-T3 is supplied on tape and reel.
Additional Information
Series: ASTMKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, CSPBGA |
| Size / Dimension | 0.061"" L x 0.033"" W (1.54mm x 0.84mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | - |
| Type | XO (Standard) |
| Operating Temperature | -10°C ~ 70°C |
| Frequency Stability | ±75ppm |
| Voltage - Supply | 1.2V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 1.3µA |
| Height - Seated (Max) | 0.024"" (0.60mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 8.192 kHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

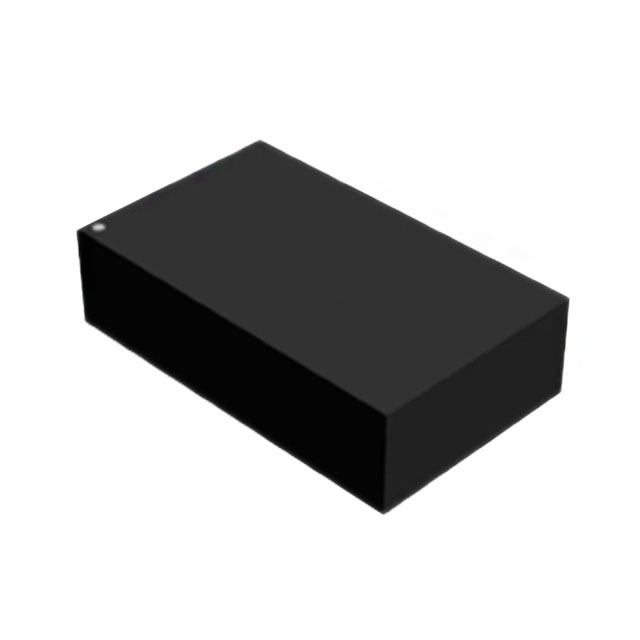

ASTMK-0.001KHZ-LQ-DCC-H-T
