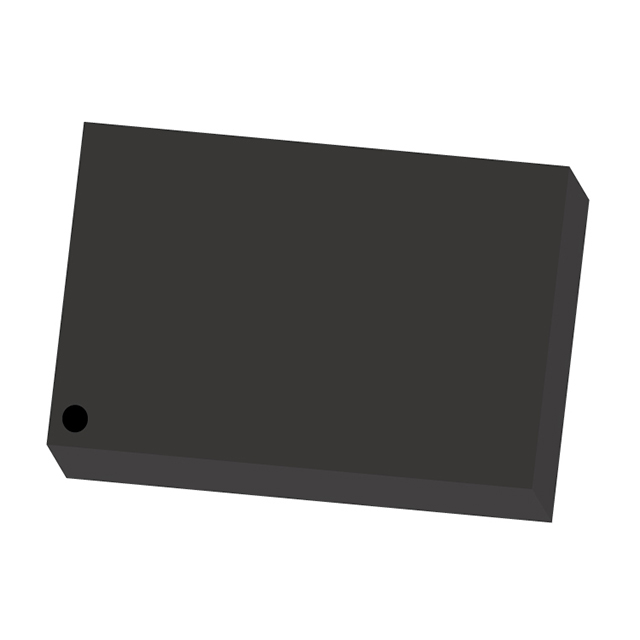

ASTMHTV-16.000MHZ-ZC-E-T3
MEMS OSC XO 16.0000MHZ LVCMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASTMHT series MEMS XO oscillator, part number ASTMHT-16-000MHZ-ZC-E-T3. This 16 MHz LVCMOS output oscillator features an enable/disable function and operates from a 2.25V to 3.63V supply. Designed for surface mounting in a 4-SMD, No Lead package, it measures 7.00mm x 5.00mm with a maximum seated height of 1.00mm. The unit offers a frequency stability of ±50ppm and an operating temperature range of -55°C to 125°C. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: ASTMHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -55°C ~ 125°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 2.25V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 16 MHz |
| Base Resonator | MEMS |
