ASM-2.048MHZ-ET
XTAL OSC XO 2.0480MHZ HCMOS TTLManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASM Series XTAL OSC XO 2.048MHz HCMOS, TTL oscillator. This surface mount component operates at a frequency of 2.048 MHz with a frequency stability of ±100ppm. It features an Enable/Disable function and operates from a 5V supply. The output is compatible with HCMOS and TTL logic levels. The package is a 4-SOJ with a 5.08mm pitch, measuring 14.00mm in length and 8.95mm in width, with a maximum seated height of 4.70mm. The current supply is a maximum of 20mA. This oscillator is suitable for applications in consumer electronics and industrial automation. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ASMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 5.08mm pitch |
| Size / Dimension | 0.551"" L x 0.352"" W (14.00mm x 8.95mm) |
| Mounting Type | Surface Mount |
| Output | HCMOS, TTL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 5V |
| Ratings | - |
| Current - Supply (Max) | 20mA |
| Height - Seated (Max) | 0.185"" (4.70mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 2.048 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

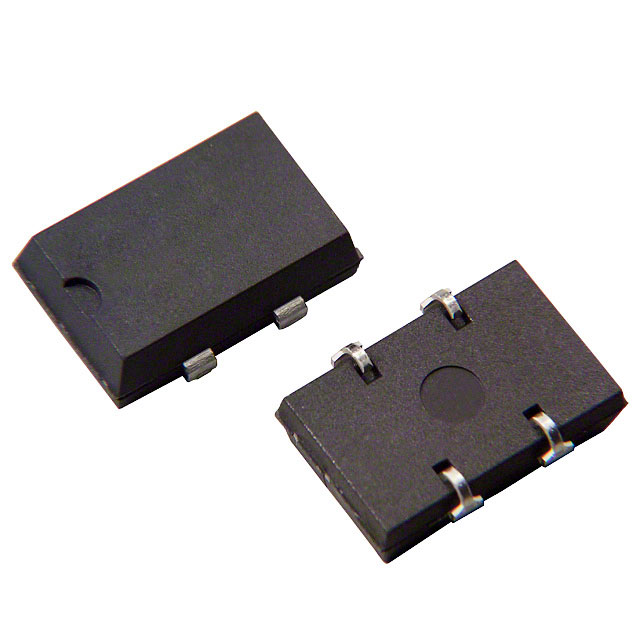

ASM-1.544MHZ-ET
