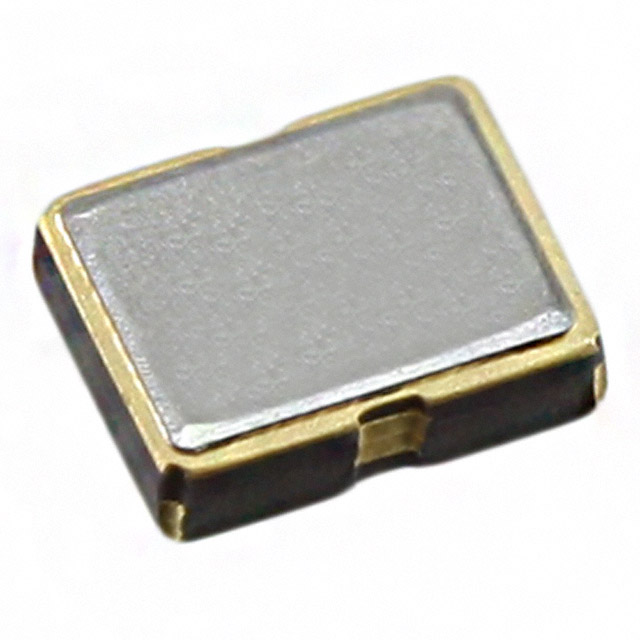

ASHEK5-32.768KHZ-LT
XTAL OSC XO 32.7680KHZ CMOS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASHEK series 32.768 kHz CMOS crystal oscillator, part number ASHEK5-32-768KHZ-LT. This surface-mount XO features a 1.5V supply voltage and a maximum current draw of 1.5µA. The oscillator offers an Enable/Disable function and operates over a temperature range of -40°C to 85°C. Its frequency stability is specified at -140ppm, +10ppm. The component is housed in a 4-SMD, No Lead package with dimensions of 0.126" L x 0.098" W (3.20mm x 2.50mm) and a maximum seated height of 0.039" (1.00mm). This device is commonly utilized in industrial and consumer electronics applications requiring precise timing. Packaging is provided on tape and reel.
Additional Information
Series: ASHEKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | -140ppm, +10ppm |
| Voltage - Supply | 1.5V |
| Ratings | - |
| Current - Supply (Max) | 1.5µA |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | Crystal |
