ASH7K-32.768KHZ-T
XTAL OSC XO 32.7680KHZ CMOS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

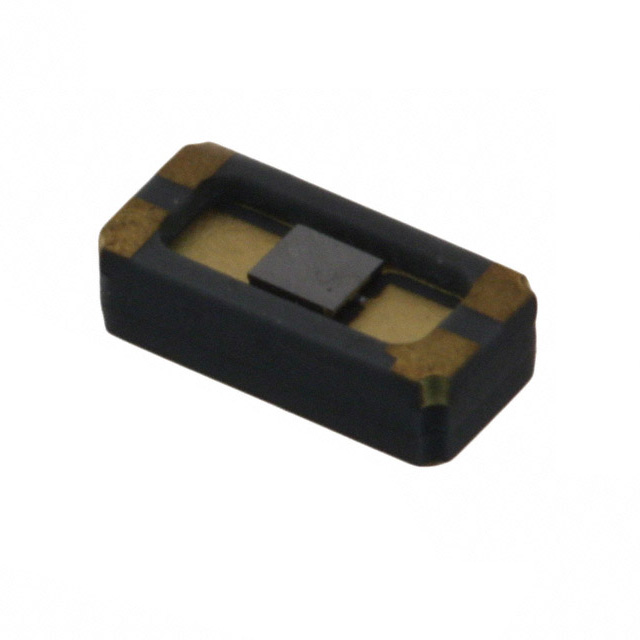

Abracon LLC ASH7K series crystal oscillator, part number ASH7K-32-768KHZ-T. This 32.768 kHz XO features a CMOS output and operates from a 3.3V supply. It includes an Enable/Disable function for flexible control. The oscillator is housed in a compact 4-SMD, No Lead package with dimensions of 3.20mm x 1.50mm and a maximum seated height of 1.00mm. Designed for surface mounting, it offers a frequency stability of -170ppm to +10ppm and a maximum supply current of 0.7µA. Operating temperature range is -40°C to 85°C. This component is suitable for applications in the industrial and consumer electronics sectors. Packaging is Tape & Reel (TR).
Additional Information
Series: ASH7KRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.059"" W (3.20mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | -170ppm, +10ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 0.7µA |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | Crystal |
