ASG-ULJ-125.000MHZ-514807-T
XTAL OSC XO 125.0000MHZ LVPECLManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

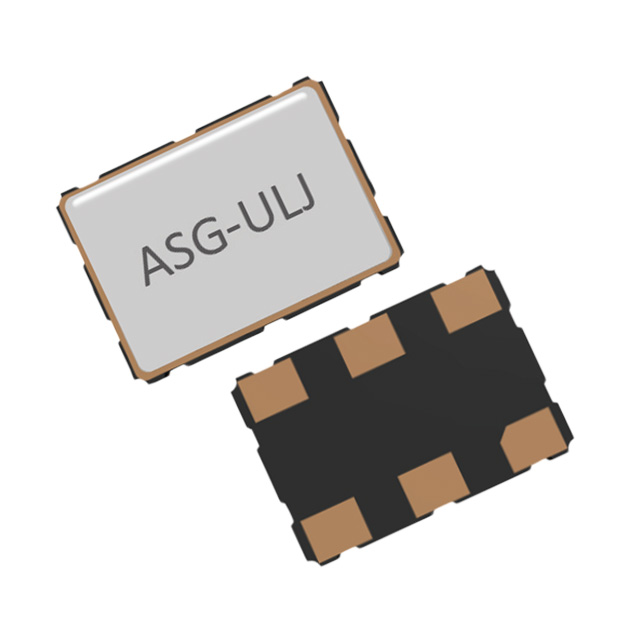

Abracon LLC ASG-ULJ series crystal oscillator, part number ASG-ULJ-125-000MHZ-514807-T, offers a 125 MHz fundamental frequency with LVPECL output. This XO (Standard) type component operates from a 3.3V supply and features an Enable/Disable function. The frequency stability is rated at ±35ppm over an operating temperature range of -40°C to 85°C. The unit is housed in a 6-SMD, No Lead package with dimensions of 0.276" L x 0.197" W (7.00mm x 5.00mm) and a maximum seated height of 0.065" (1.65mm). It is supplied on Tape & Reel (TR) and draws a maximum supply current of 75mA. This component is suitable for applications in telecommunications, computing, and industrial control systems.
Additional Information
Series: ASG-ULJRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±35ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 75mA |
| Height - Seated (Max) | 0.065"" (1.65mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 125 MHz |
| Base Resonator | Crystal |
