ASFLMX-25.000MHZ-5ABH
XTAL OSC XO 25.0000MHZ LVCMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASFLMX series XO oscillator, part number ASFLMX-25-000MHZ-5ABH, offers a stable 25 MHz output with LVCMOS signaling. This surface-mount component operates within a voltage range of 2.375V to 3.63V and features an enable/disable function. With a frequency stability of ±50ppm and a maximum supply current of 95mA, it is suitable for applications requiring precise timing. The device is housed in a 6-SMD, No Lead package with dimensions of 0.197" L x 0.126" W (5.00mm x 3.20mm) and a maximum seated height of 0.055" (1.40mm). The operating temperature range is -40°C to 85°C, making it a reliable choice for various industrial and communication systems.
Additional Information
Series: ASFLMXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 49 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 2.375V ~ 3.63V |
| Ratings | - |
| Current - Supply (Max) | 95mA |
| Height - Seated (Max) | 0.055"" (1.40mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 25 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

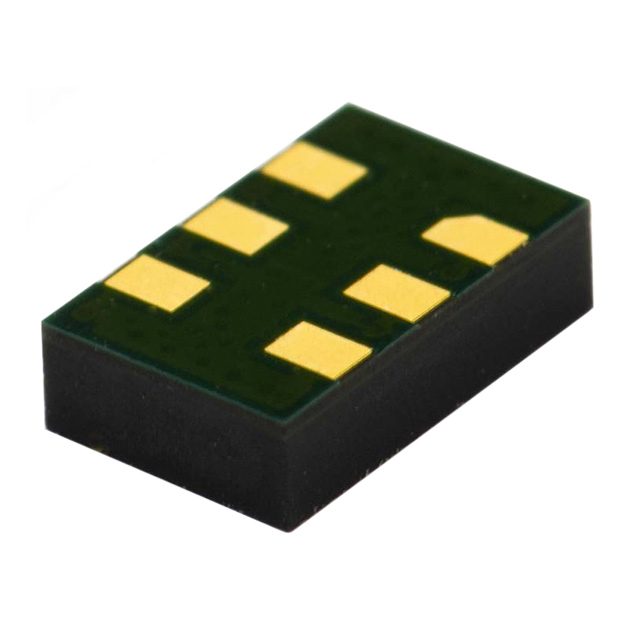

ASFLMX-100.000MHZ-5ABD
