ASEMDC1-Z-R-T3
MEMS OSC XO 2.25V-3.6V 14VFQFNManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASEMDC series Pure Silicon™ MEMS XO oscillator, part number ASEMDC1-Z-R-T3. This 54 MHz CMOS output oscillator operates from a 2.25V to 3.6V supply, featuring an enable/disable function with reprogrammable capability. The component utilizes a MEMS resonator and is housed in a 14-VFQFN exposed pad package with dimensions of 3.20mm x 2.50mm and a maximum seated height of 0.90mm. It offers a frequency stability of ±25ppm and an operating temperature range of -55°C to 125°C. Typical supply current is 32mA. Supplied on tape and reel, this oscillator is suitable for applications in automotive, industrial, and telecommunications sectors.
Additional Information
Series: ASEMDC, Pure Silicon™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN Exposed Pad |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable (Reprogrammable) |
| Type | XO (Standard) |
| Operating Temperature | -55°C ~ 125°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 32mA (Typ) |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 54 MHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

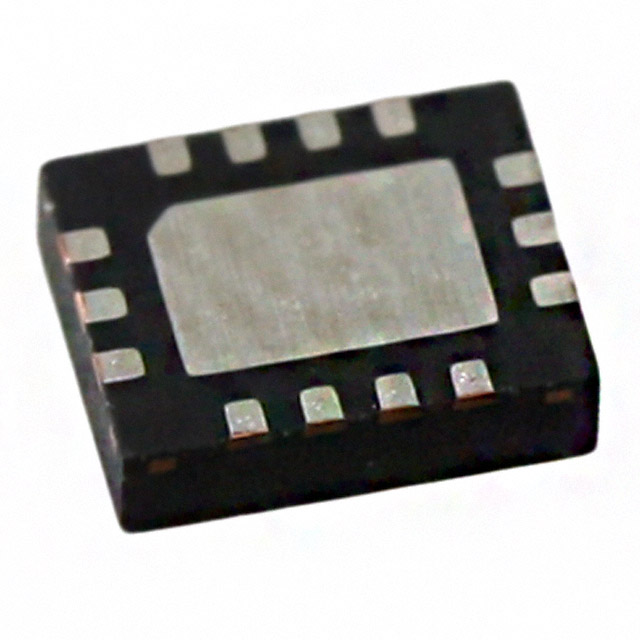

ASEMDC1-L-R
