ASEMCC1-Z-R-T3
MEMS OSC XO 2.25V-3.6V 14VFQFNManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More

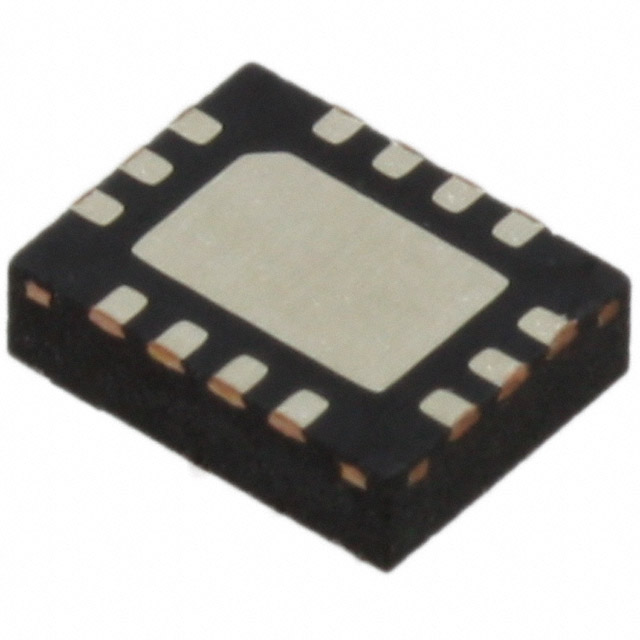

The Abracon LLC ASEMCC-Z-R-T3 is a 148.5 MHz MEMS-based XO oscillator featuring a CMOS output. This Pure Silicon™ series component operates from a 2.25V to 3.6V supply range, with a maximum supply current of 35mA. It offers an Enable/Disable function, which is reprogrammable. The device is housed in a 14-VFQFN exposed pad package, measuring 3.20mm x 2.50mm with a seated height of 0.90mm. Frequency stability is rated at ±25ppm. Mounting is via surface mount, and it is supplied in Tape & Reel (TR). This oscillator is suitable for applications requiring precise timing in sectors such as telecommunications, industrial automation, and consumer electronics. It operates across a wide temperature range from -55°C to 125°C.
Additional Information
Series: ASEMCC, Pure Silicon™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN Exposed Pad |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable (Reprogrammable) |
| Type | XO (Standard) |
| Operating Temperature | -55°C ~ 125°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 148.5 MHz |
| Base Resonator | MEMS |
