ASCO-4.000MHZ-EK-T
XTAL OSC XO 4.0000MHZ CMOS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC ASCO series crystal oscillator, part number ASCO-4-000MHZ-EK-T. This 4 MHz XO (Standard) oscillator features CMOS output and a 3.3V supply voltage. The unit offers an Enable/Disable function for control. It is housed in a compact 4-SMD, No Lead package with dimensions of 1.60mm x 1.20mm and a maximum seated height of 0.70mm. The device is designed for surface mounting and operates within a temperature range of -20°C to 70°C. Frequency stability is rated at ±30ppm. This component is suitable for applications in telecommunications, industrial control, and consumer electronics. Current consumption is a maximum of 4.5mA. The component is provided on Tape & Reel.
Additional Information
Series: ASCORoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.063"" L x 0.047"" W (1.60mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±30ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 4.5mA |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 4 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

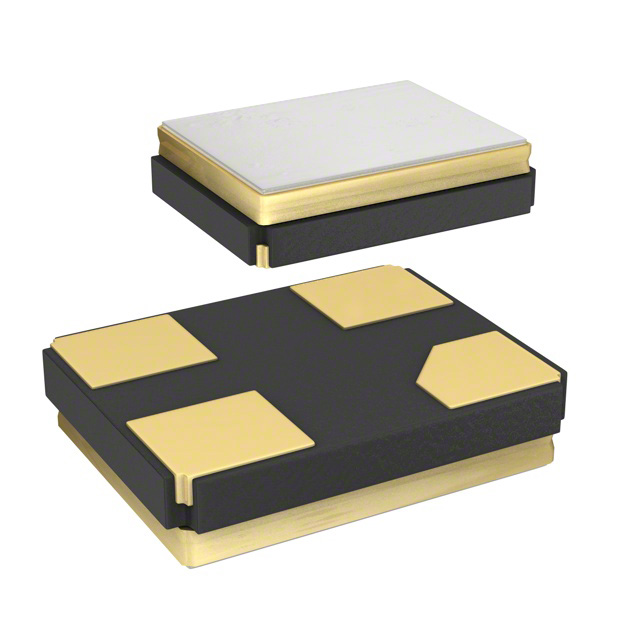

ASCO-10.000MHZ-EK-T3
