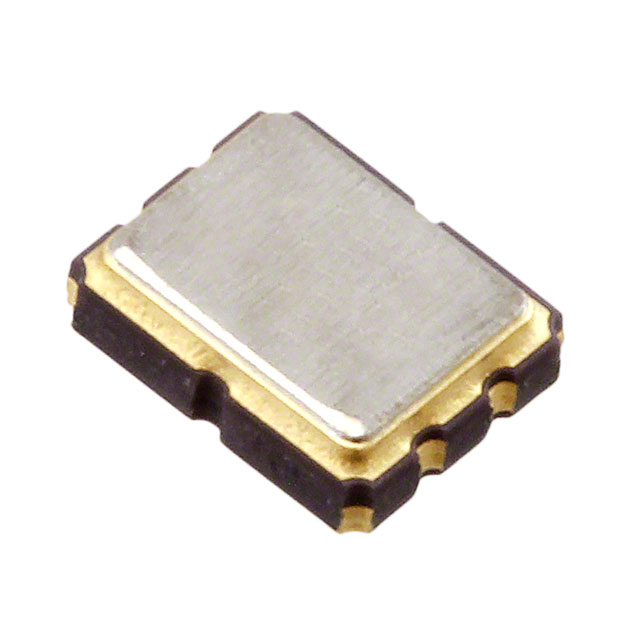

AP3S-24.000MHZ-E-R
XTAL OSC XO 24.0000MHZ CMOS SMDManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AP3S series XO (Standard) oscillator, part number AP3S-24-000MHZ-E-R, operates at a frequency of 24 MHz with a frequency stability of ±10ppm. This CMOS output device features an Enable/Disable function and requires a 3.3V supply, drawing a maximum of 10mA. The component is housed in a compact 4-SMD, No Lead package measuring 3.20mm x 2.50mm with a maximum seated height of 1.20mm. Designed for surface mounting, this oscillator is suitable for applications in automotive, industrial, and consumer electronics where precise timing is critical. It is supplied in Bulk packaging.
Additional Information
Series: AP3SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±10ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 10mA |
| Height - Seated (Max) | 0.047"" (1.20mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 24 MHz |
| Base Resonator | Crystal |
