AOCJYR-20.000MHZ-M5627LF-T
XTAL OSC OCXO 20.0000MHZ LVCMOSManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJYR series OCXO oscillator, part number AOCJYR-20-000MHZ-M5627LF-T. This temperature-compensated crystal oscillator (OCXO) operates at a precise 20 MHz with LVCMOS output. It features a ±20ppb frequency stability over an operating temperature range of -40°C to 85°C. The device requires a 3.3V supply voltage and has a maximum supply current of 122mA. Housed in a 4-SMD, No Lead package, this oscillator is designed for surface mounting, with dimensions of 0.382" L x 0.295" W (9.70mm x 7.50mm) and a maximum seated height of 0.169" (4.30mm). Supplied on tape and reel (TR). This component is suitable for applications requiring high frequency accuracy and stability, such as telecommunications infrastructure and industrial control systems.
Additional Information
Series: AOCJYRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.382"" L x 0.295"" W (9.70mm x 7.50mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | - |
| Type | OCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppb |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 122mA |
| Height - Seated (Max) | 0.169"" (4.30mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 20 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

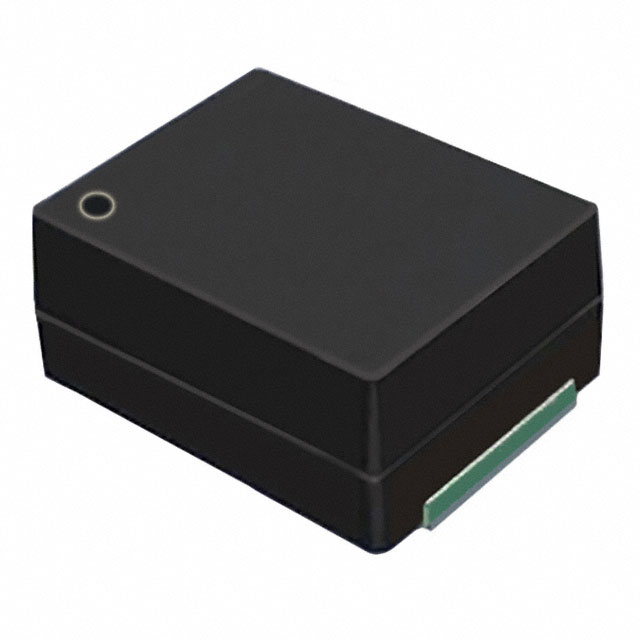

AOCJYR-10.000MHZ-M5625LF
