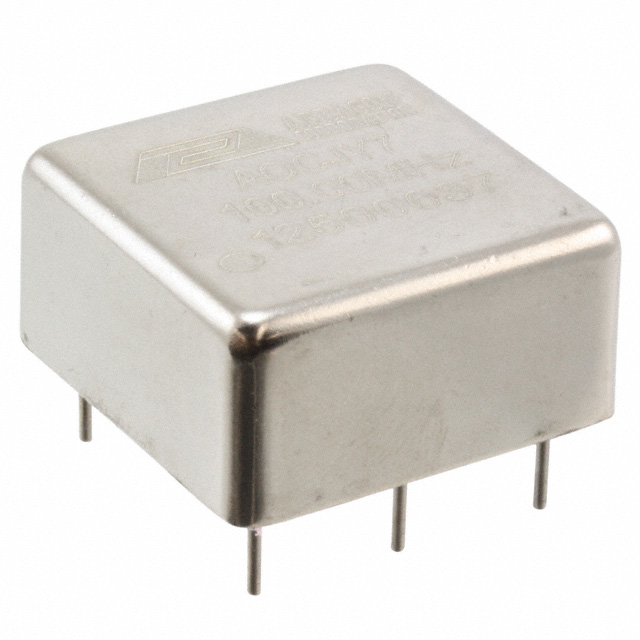

AOCJY7-100.000MHZ
XTAL OSC VCOCXO 100.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJY7 series VCOCXO oscillator, part number AOCJY7-100-000MHZ, offers a precise 100 MHz output frequency with a guaranteed stability of ±50ppb across its operating temperature range of -20°C to 70°C. This voltage-controlled crystal oscillator utilizes a crystal base resonator and delivers a sine wave output. Designed for through-hole mounting, it features a 6-DIP (0.750", 19.05mm) package with 5 leads. The supply voltage range is specified as 11.4V to 12.6V. This component is commonly employed in telecommunications, test and measurement equipment, and radar systems where precise frequency control is critical.
Additional Information
Series: AOCJY7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-DIP (0.750"", 19.05mm), 5 Leads |
| Size / Dimension | 1.000"" L x 1.000"" W (25.40mm x 25.40mm) |
| Mounting Type | Through Hole |
| Output | Sine Wave |
| Function | - |
| Type | VCOCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±50ppb |
| Voltage - Supply | 11.4V ~ 12.6V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.500"" (12.70mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
