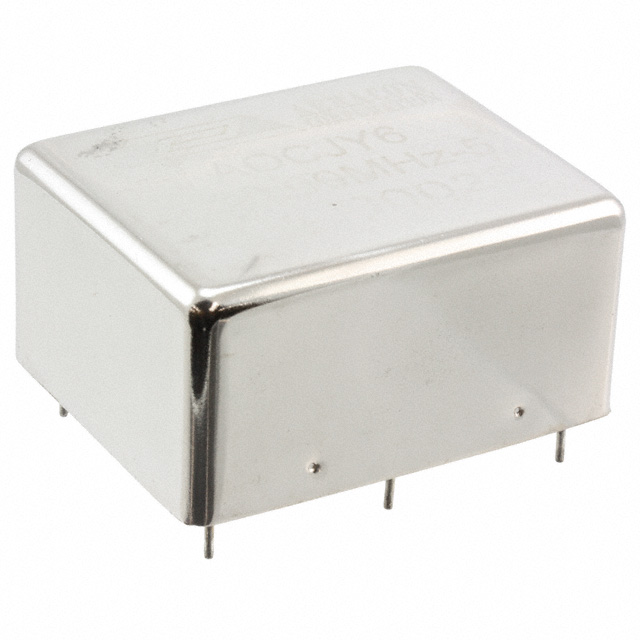

AOCJY6-10.000MHZ-2
XTAL OSC VCOCXO 10.0000MHZ SNWVManufacturer: Abracon LLC
Categories: Oscillators
Quality Control: Learn More
Abracon LLC AOCJY6 series Voltage Controlled Crystal Oscillator (VCOCXO) with part number AOCJY6-10-000MHZ-2. This through-hole mounted component provides a stable 10 MHz sine wave output with ±0.2ppb frequency stability. It operates within an 11.4V to 12.6V supply voltage range and features a 6-DIP package measuring 2.008" L x 1.614" W with 5 leads. The AOCJY6 series VCOCXO is suitable for demanding applications in telecommunications, instrumentation, and defense industries requiring precise frequency control. The package dimensions are 1.260" (32.00mm) and the seated height is 0.984" (25.00mm). It is supplied in trays and operates within a temperature range of -20°C to 70°C.
Additional Information
Series: AOCJY6RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-DIP (1.260"", 32.00mm), 5 Leads |
| Size / Dimension | 2.008"" L x 1.614"" W (51.00mm x 41.00mm) |
| Mounting Type | Through Hole |
| Output | Sine Wave |
| Function | - |
| Type | VCOCXO |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±0.2ppb |
| Voltage - Supply | 11.4V ~ 12.6V |
| Ratings | - |
| Current - Supply (Max) | - |
| Height - Seated (Max) | 0.984"" (25.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
